Product Details:
|
| Device Package: | TO | Optional Wavelength: | 850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 Nm Etc. |
|---|---|---|---|
| Wavelength Accuracy: | ± 3 Nm | Output Power: | ≥1.0mW |
| Connector Type: | Can Be Customized | Output Power Stability Within 15mins: | ≤±0.01 DB |
| Weight: | 3kg | Models: | Rack |
| Highlight: | 1550nm DFB Laser Source,Coaxial laser Source 1350nm,1310nm DFB Laser Source |
||

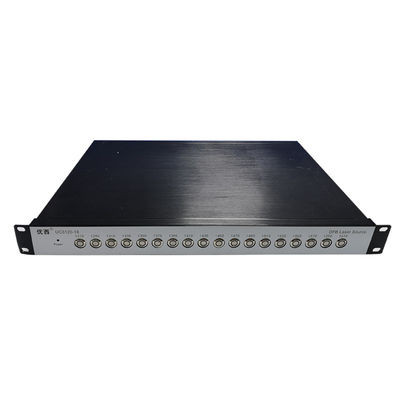

1310 1550nm DFB Laser Source Stabilized Light Source Coaxial Laser
Specification
| Model # | UC8120-18 |
| Device Package | TO |
| Optional Wavelength |
850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc. |
| Wavelength Accuracy | ± 3 nm |
| Output Power | ≥1.0mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
|
Output Power Stability within 15mins |
≤±0.01 dB |
|
Output Power Stability within 8 hrs |
≤±0. 05 dB |
| SMSR | ＞ 35 dB (850/980nm),＞ 40 dB(1250nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
UC8120-18 Multichannel DFB laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.
UC8120-18 Multichannel DFB laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
