Product Details:
|
| Channel Number: | 4 | Optional Wavelength: | 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, Or 1625 Nm And Etc |
|---|---|---|---|
| Device Package: | Butterfly | Wavelength Accuracy: | ± 2 Nm |
| Output Power: | ≥10.0mW | Bandwidth@3 DB: | ＜ 0.1 Nm |
| Bandwidth@20 DB: | ＜ 0.5 Nm | Weight: | 3.0 Kg |
| Highlight: | Multichannel DFB Laser Source,adjustable light source 1270nm UC,DFB Laser Source 1330 nm |
||

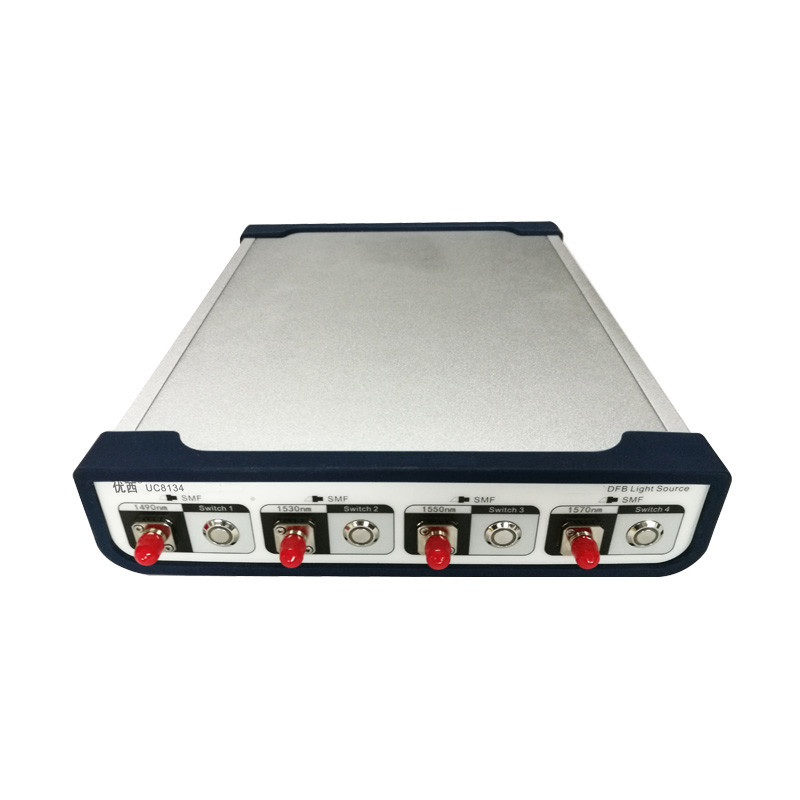

Multichannel DFB Laser Source Adaptor Can Be Customized Fast Startup Speed
Specification
| Model # | U8134 |
| Device Package | Butterfly |
| Optional Wavelength | 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc. |
| Wavelength Accuracy | ± 2 nm |
| Output Power | ≥10.0mW |
| Connector Type | FC/APC( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
| Output Power Stability within 15mins | ≤±0.005 dB |
| Output Power Stability within 8 hrs | ≤±0. 05 dB |
| SMSR | ＞ 45 dB(1270nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
U812n/U813n multi-channel laser light source has the characteristics of high output stability, small volume and fast start-up. Light source equipment can provide multiple channels of fixed wavelength light source output signal. We can also customize 850, 980, 1250,1270... 1610,1625 nm, any two or four or multiple wavelength combination of light source equipment.
Communication Interface Description
There are two communication ports on the rear panel of the instrument, namely USB interface and RS232 interface.
Light source output interface
Light source connector interface for laser signal output. Select FC/PC or FC/APC connectors and SMF or MMF optical fibers according to the optical fiber type instructions on the instrument panel.
The wavelength label displays the wavelength of the corresponding channel.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
