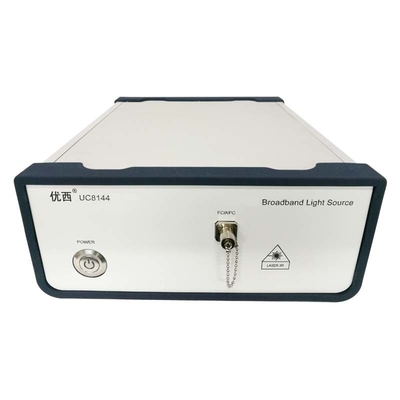

ASE Tunable Laser Source Broadband Light Source Superflat 1260 nm ~ 1650 nm

ASE Tunable Laser Source Broadband Light Source Superflat 1260 nm ~ 1650 nm
ASE Tunable Laser Source Broadband Light Source Superflat 1260 nm ~ 1650 nm

Large Image :  ASE Tunable Laser Source Broadband Light Source Superflat 1260 nm ~ 1650 nm

Product Details:
Place of Origin: China
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8144
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: cartons
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

ASE Tunable Laser Source Broadband Light Source Superflat 1260 nm ~ 1650 nm

Description
Spectral Density Stability Within 15mins: <± 0.03 DBm/nm Output Power Stability Within 15mins: <±0.01 DB
Output Power Stability Within 8 Hrs: ≤± 0.05 DB Operation Model: CW
Operation Wavelength: 1260 ~ 1650 Nm Band Wide @-10 DB: ≥390 Nm
Output Power: ≥10dBm Spectral Density: ≥-28dBm/nm
Highlight:

Tunable Laser Source 1260 nm

,

UC broadband light source 1650 nm

,

Tunable Laser Source 1650 nm

U8144 ASE Broadband Light Source Superflat light source 1260 ~ 1650 nm

Specification

Model U8144
Operation Wavelength 1260 ~ 1650 nm
Band wide @-10 dB ≥390 nm
Output Power ≥10dBm
Spectral Density ≥-28dBm/nm
Connector Type FC/APC (other adaptor can be customized)
Spectral Density Stability within 15mins <± 0.03 dBm/nm
Output Power Stability within 15mins <±0.01 dB
Output Power Stability within 8 hrs ≤± 0.05 dB
Operation Model CW
Fiber Type Single Mode SFM-28
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Power Supply AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W
Dimensions 235mm W, 55 mm H, 320 D mm
Weight 3.0 kg





   U8144 broadband light source is composed of ultra-strong light-emitting diode (SLED) technology and butterfly packaging device. The single-band or full-band continuous output light source is constructed by high stability driving and controlling circuit. The single band bandwidth can reach 100nm, and the full band bandwidth can reach 400nm.
   U8144 broadband light source has the advantages of high stability, small size, fast start and affordable price. It provides the output of the broadband light source in the wavelength range of 1260 ~ 1650 nm.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
