1550nm 1570nm 1590nm Distributed Feedback Laser Source DFB

1550nm 1570nm 1590nm Distributed Feedback Laser Source DFB
1550nm 1570nm 1590nm Distributed Feedback Laser Source DFB

Large Image :  1550nm 1570nm 1590nm Distributed Feedback Laser Source DFB

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8130
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20pcs+per month
Contact Now

1550nm 1570nm 1590nm Distributed Feedback Laser Source DFB

Description
Device Package: TO/Butterfly Wavelength Accuracy: ± 2 Nm
Connector Type: FC/APC(Other Adaptor Can Be Customized) Output Power Stability Within 8 Hrs: ≤±0. 05 DB
SMSR: ＞ 35 DB (850/980nm),＞ 40 DB(1270nm Etc.) Storage Temperature: -30～+80 ℃
Highlight:

1570nm Distributed Feedback Laser Source

,

1550nm laser power source UC

,

1590nm Distributed Feedback Laser Source

U8130 Multichannel DFB Laser Source



Model # U8120 U8130
Device Package TO Butterfly
Optional Wavelength

850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
Wavelength Accuracy ± 3 nm ± 2 nm
Output Power ≥1.0mW ≥10.0mW
Connector Type FC/APC(Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜ 0.5 nm
Output Power Stability within 15mins ≤±0.01 dB ≤±0.005 dB
Output Power Stability within 8 hrs ≤±0. 05 dB
SMSR ＞ 35 dB (850/980nm),＞ 40 dB(1270nm etc.)
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg

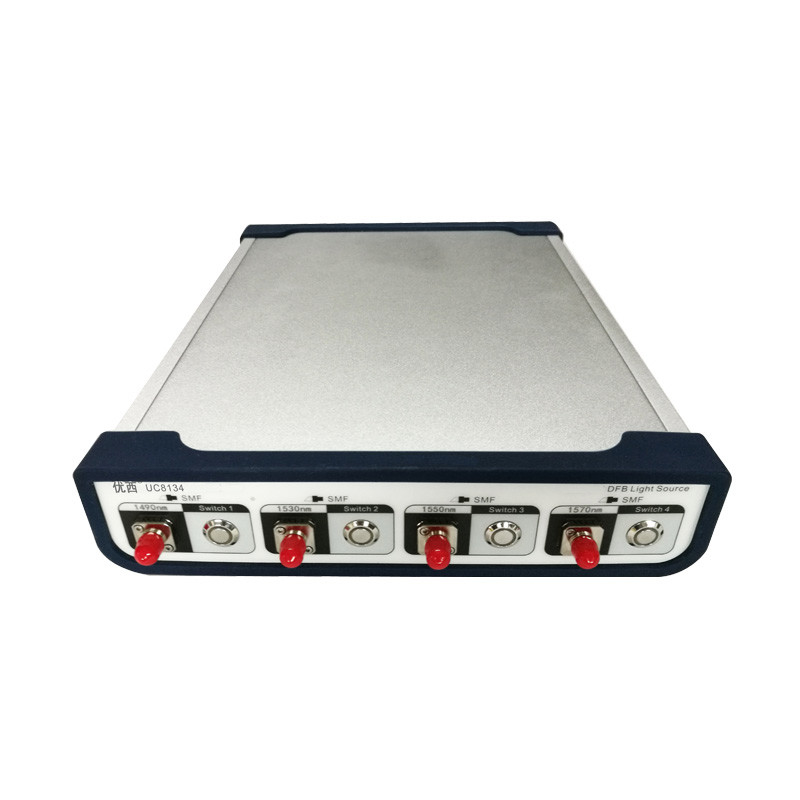

U8130 Multichannel DFB laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.
U8130 Multichannel DFB laser source is a highstability, compact-sized, fast-starting, and affordable optical laser source. It providesMultichannelhigh performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc.

FAQ
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.

Tag:

4 Channel LanWDM Light Source,

3 Channels DFB Laser Source,

4Ch laser optical source
