Home ProductsTunable Laser Source

4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy

I'm Online Chat Now

4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy

4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy
4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy

Large Image :  4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8124
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

4 Channels Tunable Laser Source Stabilized Light Source Measurement Accuracy

Description
Channel Number: 4 Color: Silver
Material: Metal Device Package: TO
Wavelength Accuracy: ± 3 Nm Output Power: ≥1.0mW
SMSR: > 35 DB (850/980nm) Dimensions: 235 Mm W, 55 Mm H, 320 Mm D
Highlight:

4 Channels Tunable Laser Source

,

4 Channels DFB Laser Source

,

UC Tunable Laser Source 980nm

4channels DFB Laser Source Stabilized Light Source Measurement Accuracy





Specification



Model # U8124
Device Package TO
Optional Wavelength

850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.

Wavelength Accuracy ± 3 nm
Output Power 1.0mW
Connector Type FC/APC ( Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB 0.5 nm
Output Power Stability within 15mins ≤±0.01 dB
Output Power Stability within 8 hrs ±0. 05 dB
SMSR > 35 dB (850/980nm),> 40 dB(1250nm etc.)
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg

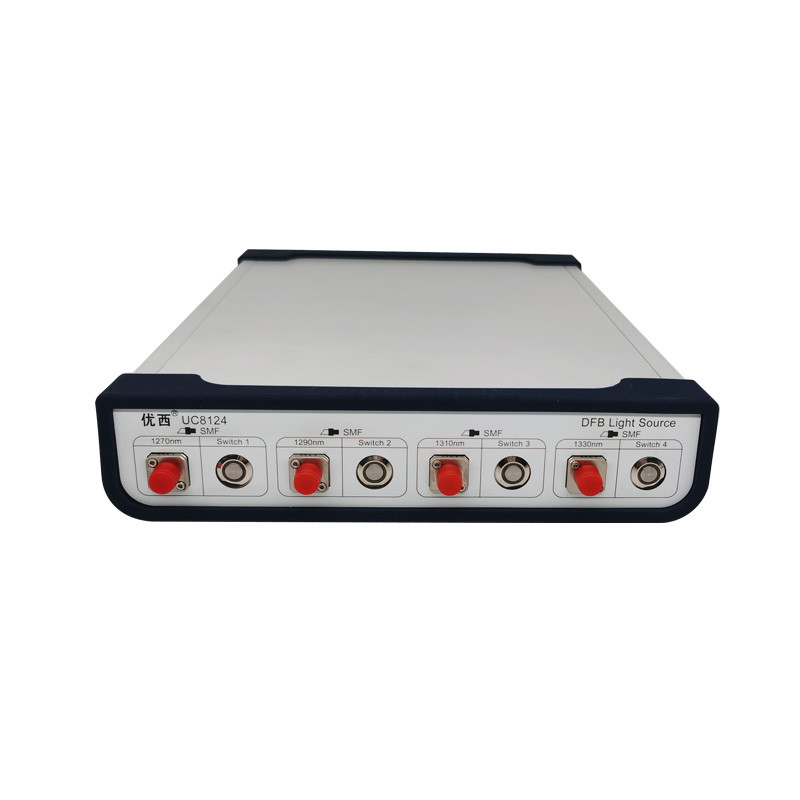

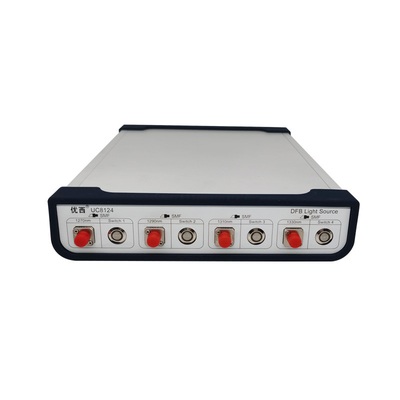

U8124 Multichannel DFB laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.

U8124 Multichannel DFB laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q: What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
