Product Details:
|
| Highlight: | L band Tunable Laser Source UC,adjustable light source 1610 nm,Tunable Laser Source 1568 nm |
||
|---|---|---|---|

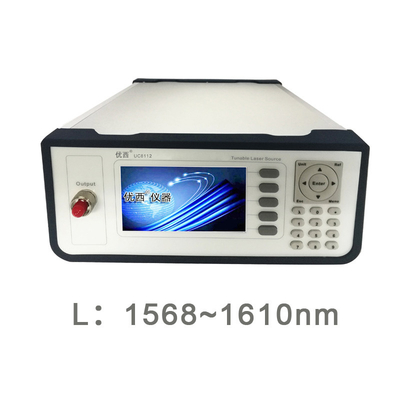

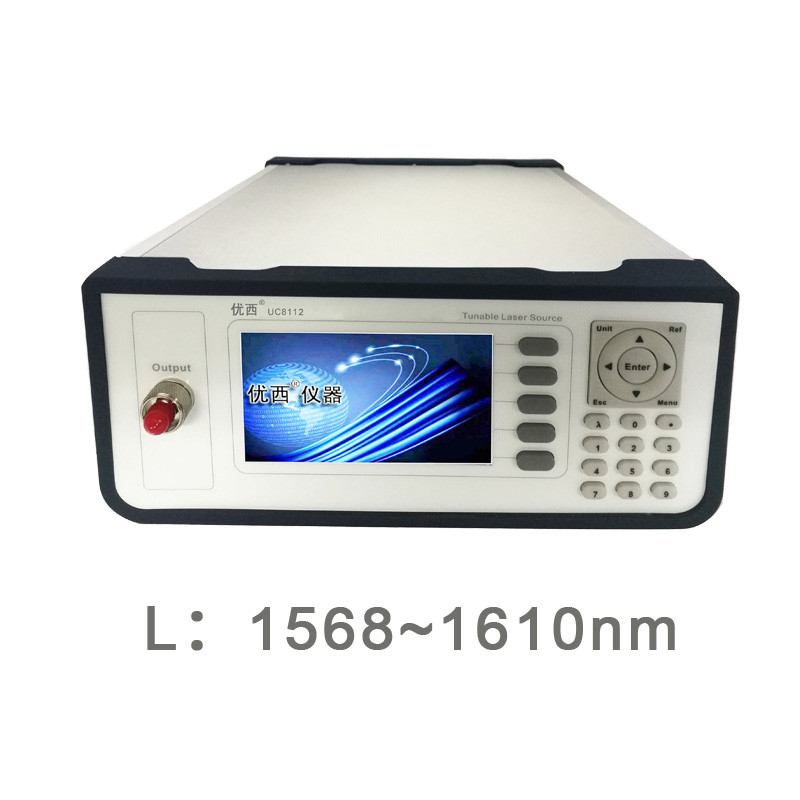

U8112 L band Adjustable Light Source Attenuation function 1568~1610
| Model # | U8112L | |||
| Band Option | L | |||
| Wavelength Tuning range (nm) | 1568~1610 | |||
| Output Power | ≥10dBm | |||
| Power Adjust Range (Option) | 25 dB | |||
| Wavelength resolution | 1.0 pm | |||
| Absolute wavelength accuracy | ± 10 pm, typ. ＜5 pm | |||
| Relative wavelength accuracy | ±5 pm, typ. ± 2 pm | |||
| Wavelength repeatability | ± 2 pm, typ. ±1 pm | |||
| Wavelength stability | ≤± 2 pm (24 hrs at constant temperature) | |||
| Tuning speed | ≤ 2 ms per step | |||
| Power stability | ≤ ± 0.01dB, (15min). | |||
| Power repeatability | ± 0.05dB | |||
| Power linearity | ± 0.3dB | |||
| Power flatness versus wavelength | 0.3dB typ. 0.5dB max. | |||
| Side-mode Suppression ratio | ≥ 35dB | ≥ 45dB | ||
| Relative intensity noise | ＜ -135dB | |||
| Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. | |||
| Storage temperature | −40°C to +80°C | |||
| Operating temperature | 0°C to +45°C | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
Laser output interface
FC/APC connector interface, the product uses easy-to-clean connector, can be removed from the front part of the optical fiber to expose the end face, convenient for users to clean the end face.
Display
The display screen shows the main interface of the instrument, which is convenient for users to understand the status and interactive operation.
The key area
UC8112can control the laser switch and set the specified output wavelength by pressing the key.
Easy to operate.
application
Measurement using a optical fiber sensor.
Costing WDM, AWG, PLC component measurement.
Measurement of linear polarization mode dispersion (PMD) and polarization interpolation loss (PDL).
X-ray Optical, a lab for communication optics develops measurement applications.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
