Product Details:
|
Product Name: | RF Power Components | Wavelength Range: | 850nm 1700nm |
---|---|---|---|
Return Loss: | > 40 DB | Dimensions: | 245 Mm W, 105 Mm H, 320 Mm D |
Weight: | 2.0 Kg | Power Range: | +10 ~ -65dBm |
Highlight: | 850nm RF Power Components,DWDM Test System,1700nm RF Power Components |

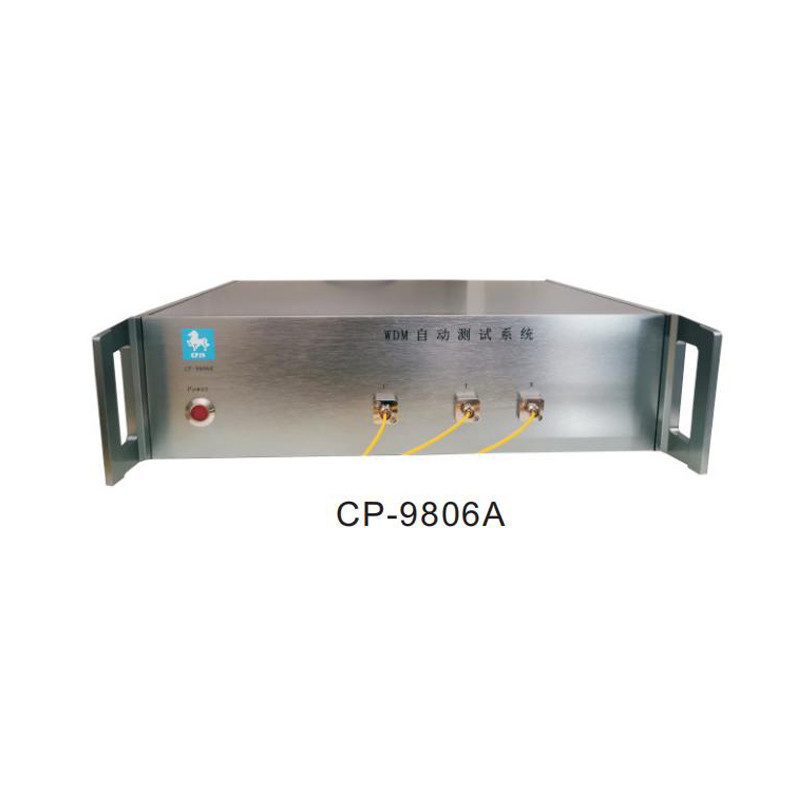

DWDM Integrated device test system
A DWDM system generally consists of five components: Optical Transmitters/Receivers, DWDM Mux/DeMux Filters, Optical Add/Drop Multiplexers (OADMs), Optical Amplifiers, Transponders (Wavelength Converters).
Optical Power Meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers EDFA, and other general purpose of fiber optical test and measurement applications.
Model # | UC8201 | UC8202 | UC8204 | UC820XH |
Number of Channels | 1 | 2 | 4 | X |
Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
Wavelength Range | 850 ~ 1700 nm | |||
Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
Relative Uncertainty (accuracy) at reference condition |
< 0.02 dB Typical | |||
Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
Return Loss | > 40 dB | |||
Operation Temperature | 0 ~ +40℃ | |||
Storage Temperature | -30 ~ +80℃ | |||
Recalibration Period | 2 years | |||
Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
Weight | 2.0 kg |
UC8202/4 2/4channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC8202/4 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
