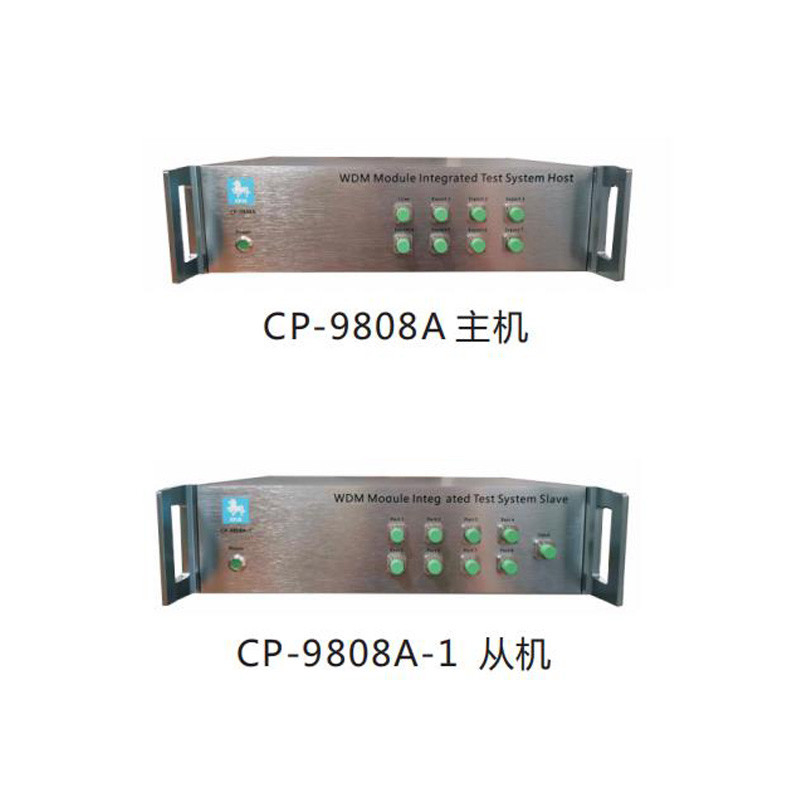

Large Image :  Optical Power Meters RF Power Components DWDM Module Integration Test System

Product Details:
Place of Origin: CHINA
Brand Name: CP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5pcs+per month

Optical Power Meters RF Power Components DWDM Module Integration Test System

Description
Product Name: DWDM Module Integration Test System Power Range: +25 ~ -50dBm
Number Of Channels: 1, 2, 4 Linearity (power): ≤ ± 0.06 DB
Storage Temperature: Storage Temperature -30 ~ +80℃ OEM: Available
Highlight:

Optical Power Meters RF Power Components

,

DWDM Module Integration Test System

,

RF Power Components 1700 nm

DWDM module integrated test system





The system is designed for multi-channel products with short working wavelength, such as DWDM, AWG, MWDM, LWDM and so on.
The system integrates the scanning mode of the traditional adjustable light source + multi-channel optical power meter with the point light source (ITU) + optical power meter, effectively improving the overall test of the product
Efficiency, reduce equipment input costs, labor costs.
In addition, the use of optical box to compress the station equipment space, improve the cleanliness of the station.
In the testing process, the system is automated and processed, which is conducive to staff training and anti-stay and anti-error.



How it works:
According to the product type, different band of adjustable light source and ITU light source are selected, and the test specifications of the corresponding product are set. When operating, the instrumentation server for point measurements is based on each parameter
The request of the client uses the algorithm mechanism reasonably to schedule the resources of the server effectively, which can realize the real sense of real-time parallel scanning for the scanning parameter system.
After all parameters are tested, the system analyzes, saves and automatically determines the test data, and displays the test results on the test program interface.





Function introduction:
1. Applicable to DWDM, AAWG, MWDM, LWDM and other categories
Multi-channel module products;
2. Test parameters include IL,RL,PDL,CWL@NdB,BW,Ripple, etc
Conventional parameters;
3. Retain test data and results, generate and print custom shipment reports;
4. According to the measured products, select the instrument hardware, define the test specifications and processes;
5. Support to expand multiple stations and support multi-temperature testing;
6. The system can be customized according to the actual needs of customers.





Highlights:
1. Improve test efficiency: the product only needs to be connected once, reduce the number of wiring, automatic parameter testing;
2. Reduce testing costs: reduce staff training time, reduce equipment and personnel input;
3. Convenient on-site management: standard integrated optical path box, less space, simple optical path connection;
4. System error prevention: the operator works according to the prompt, the operation items are less, the system automatically determines and calculates;
5. Test parameters comprehensive: including IL, RL, PDL, ISO,.cwl, BW, Ripple WDM indexes such as;
6. Classification of test results: Define multiple product levels according to the actual needs of production;
7. Test data traceability: Data is retained in the database and local, and records can be traced for a long time;
8. Combined with FIS/MES system: paperless in the true sense can be achieved.





Optical Power Meters RF Power Components DWDM Module Integration Test System 0



FAQ

Q: Are your company a trading one or a factory?

A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.

Q: What is the price term?

A: FOB ShenZhen

Q: What’s the warranty time?

A: 12 months after shipment date.

Q: How to place order?

A: Talk to service staff, confirm machine details, and then place order.
