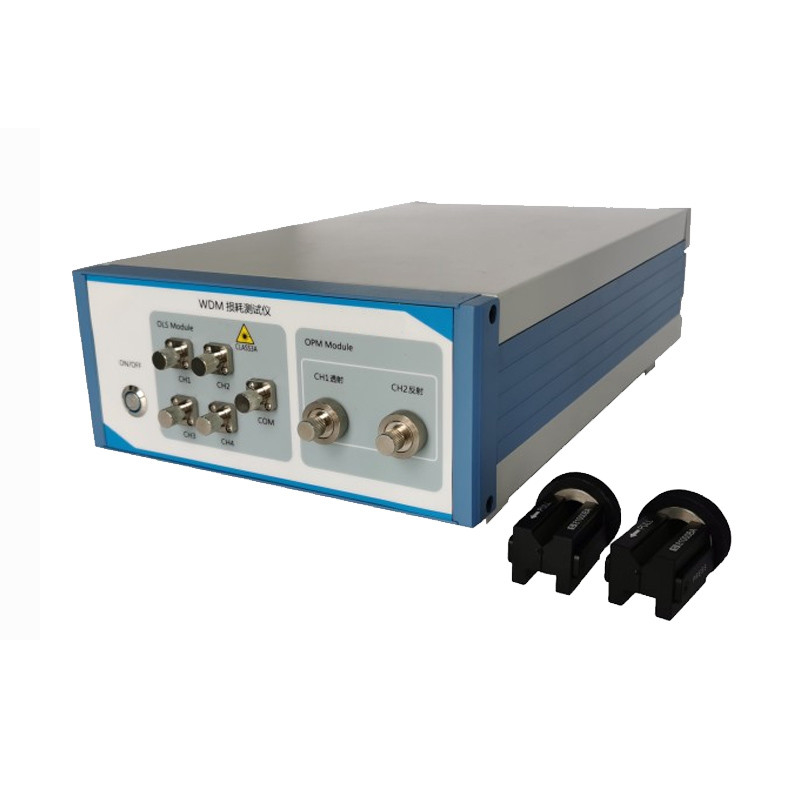

WDM RF Power Components Optical Integrated Loss Tester

WDM RF Power Components Optical Integrated Loss Tester
WDM RF Power Components Optical Integrated Loss Tester

Large Image :  WDM RF Power Components Optical Integrated Loss Tester

Product Details:
Place of Origin: CHINA
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1pcs+per month

WDM RF Power Components Optical Integrated Loss Tester

Description
Product Name: WDM RF Power Components Number Of Channels: 24 / 4 / 8 Channel
Wavelength Range: 850~1700 Nm Power Range: 0 ~ -20 DBm
Optical Interface Type: FC/APC Fiber Core Diameter: 50/125 Um
Highlight:

WDM RF Power Components

,

WDM return loss meter

,

Optical RF Power Components

WDM integrated loss tester



Model # UC8550-08 UC8550-12 UC8550-24
Number of Channels 8 12 24
Sensor Element integrating sphere
Operation Wavelength Range 850~1700 nm
Power Range 0 ~ -20 dBm
Degree of Linearity ±0.05dB(SM),±0.1dB(MM)
Application Fiber Type Standard singlemode or multimode fiber
Uncertainty 3%
Insertion Loss Part multimode MM
Center Wavelength 850 / 908 nm
Spectrum Range ± 30 nm
Type of  Light Source LED,LD or optional
Fiber Core Diameter 50/125 um
Circular Flux Standard suit for IEC-61280-4-1
Output Stability ± 0.05dB(15min),±0.1dB(1hour)
Optical Interface Type FC/APC
Return Loss Part multi mode MM
Type of Light Source Pulsed FP Laser
Measuring Range 14~50 dB
Measurement Accuracy ±1dB(14~40dB),±4dB(40~50dB)
Minimum Test Length 2M (terminal APC),3M(terminal PC)
Maximum Test Length 200 Meters
Communication Interface USB
Power Source 90~240V AC
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 360mm W×160mm H×345mm D
Weight 6.5 kg



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
