QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+

Description

Deviation Voltage Adjustment Accuracy:	5 MV	Monitoring Voltage Accuracy:	5 MV
Operating Temperature:	-40~85°C	Monitoring Current:	0~2000 MA
Power Supply Voltage (external DC Power Input Voltage):	4~5.5V	Input/output Level Mode:	CMl
Highlight:	2000mA SFP Evaluation Board , QSFP28 SFP Evaluation Board

QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+

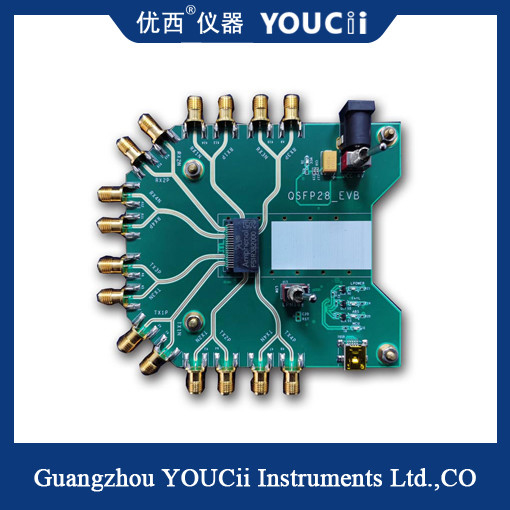

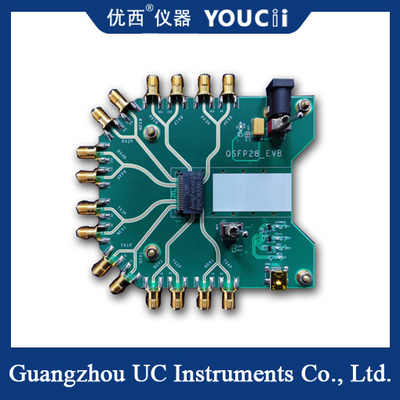

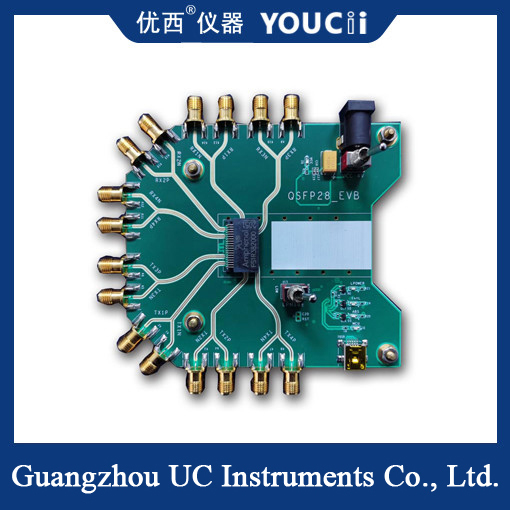

This product is designed to evaluate the performance of QSFP+ and QSFP28 packaged active modules with four input/output channels in each transmitting and receiving terminal. Single-terminal NRZ rates range from 10G~32Gbps and PAM4 baud rates range from 25GBoud~28GBoud. Supported modules include NRZ 40G and 100G products. And PAM4 50G, 100G, 200G products, using error meter equipment, attenuator and oscilloscope equipment, to evaluate the active module's transmission performance indicators (such as eye image related indicators), reception performance indicators (such as sensitivity indicators), read and write module EEPROM information, etc.

QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+ Technical index

NO.	index	Maximum value	Minimum value	unit
1	Data rate	56	10.3125	Gbps
2	Adjustable output supply voltage	4	2.8	V
3	Deviation voltage adjustment accuracy	5		mV
4	Monitoring voltage accuracy	5		mV
5	Monitoring current	2000	0	mA
6	Monitoring current accuracy	0.1		mA
7	I2C rate	400	100	KHz
8	Power supply voltage (external DC power input voltage)	5.5	4	V
9	Operating temperature	85	-40	°C
10	Communication mode	USB HID, no drive.
11	TX,RX Electrical interface type	40GHz 2.92mm female
12	Input/output level mode	CML
