Product Details:
|
| Fiber Connector: | FC/APC | Fiber Type: | Single-mode Fiber |
|---|---|---|---|
| Material: | Metal | Shape: | Desktop |
| Output Power: | 10mW | Color: | Silver |
| Operating Temperature: | -40℃ To +85℃ | ||
| Highlight: | 18-Channel DFB Coaxial Light Source,Customized Wavelength DFB Coaxial Light Source,Butterfly DFB Coaxial Light Source |
||

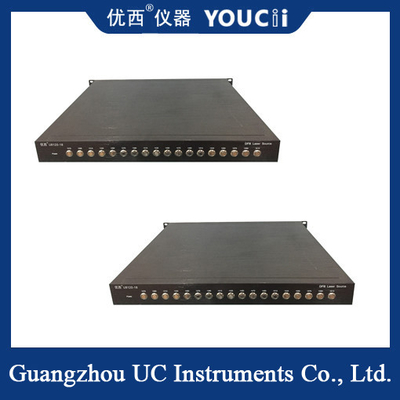

18-Channel DFB Coaxial/Butterfly Light Source Wavelength Can Be Customized
Butterfly light source: Not a common light source type term, may be related to the butterfly laser (DFB laser), but the latter is more used in areas such as fiber optic communications and fiber sensing, rather than machine vision. In the field of machine vision, coaxial light sources, strip light sources, ring light sources and so on are usually discussed.
Coaxial light source: that is, the illumination direction is parallel to the lens optical axis of the machine vision dedicated LED light source. It provides more uniform illumination than traditional light sources while avoiding the reflection of objects, thus improving the accuracy and reproducibility of machine vision.
An 18-channel coaxial light source may refer to a coaxial light source system with 18 independent channels, each of which can be controlled independently to provide different lighting conditions or effects.
Specification
| Model # | U8130-18/U8120-18 |
| Device Package | Butterfly/TO |
| Optional Wavelength | 1305/1308 and so on |
| Wavelength Accuracy | ± 2 nm |
| Output Power | ≥10.0mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜ 0.5 nm |
| Output Power Stability within 15mins | ≤±0.005 dB |
| Output Power Stability within 8 hrs | ≤±0. 05 dB |
| SMSR | ＞ 45 dB(1270nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
Applications: This multi-channel light source system may be used in machine vision applications that require a high degree of flexibility and precise control, such as the detection of complex surfaces, multi-feature recognition, etc.
Advantages:
Flexibility: The multi-channel design allows users to adjust the lighting parameters of each channel as needed to achieve the best imaging results.
Accuracy: Independent channel control can provide more precise lighting control, helping to improve the accuracy and reliability of machine vision systems.
Scalability: Multi-channel systems are easy to scale and can add more channels or features as needed.
