523nm 628nm 940nm Laser Light Source Single Channel Model

I'm Online Chat Now

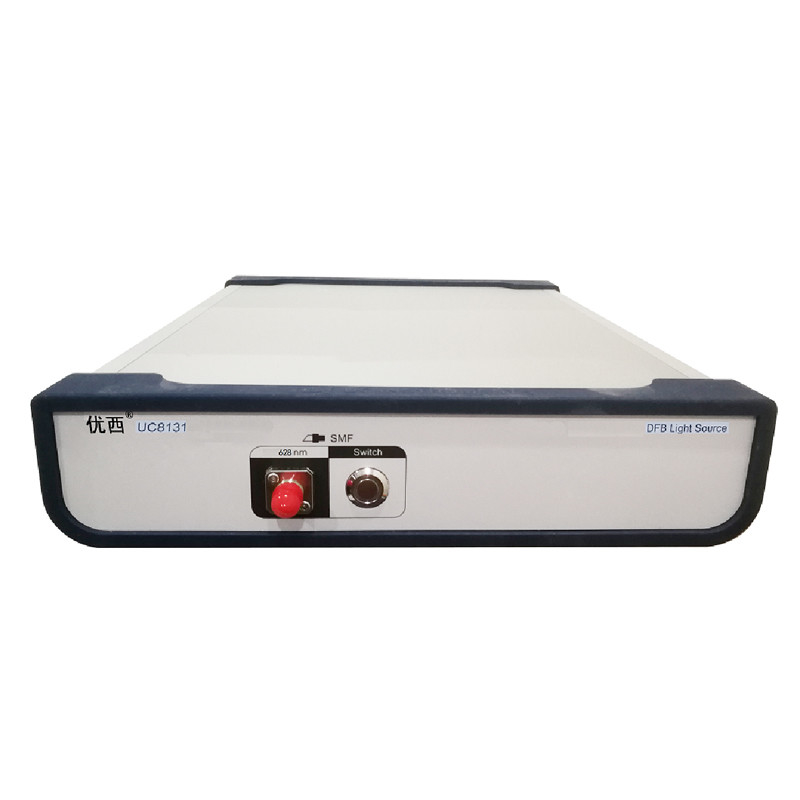

523nm 628nm 940nm Laser Light Source Single Channel Model

523nm 628nm 940nm Laser Light Source Single Channel Model
523nm 628nm 940nm Laser Light Source Single Channel Model

Large Image :  523nm 628nm 940nm Laser Light Source Single Channel Model

Product Details:
Place of Origin: China
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8131
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+ per year

523nm 628nm 940nm Laser Light Source Single Channel Model

Description
Highlight:

940nm Laser Light Source UC

,

523nm laser power source 10mW

,

628nm Laser Light Source

U8121 523/628/940nm Special wavelength Laser Source



Specification



Model  U8121-523 U8121-628 U8121-940
Device Package Single mode coaxial device
Optional Wavelength 523 628 940
Wavelength Accuracy ± 10 nm
Output Power 10mW 6mW 15mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB < 3.0 nm
Bandwidth@20 dB < 10 nm

Output Power Stability within 15mins

≤ ± 0.05 dB

Output Power Stability within 8 hrs

≤ ± 0.1 dB
SMSR 25 dB
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 2.0 kg

Note: Single channel model Single Channel: U8121;

Double Channel: U8122;

Model Four Channel: U8124
