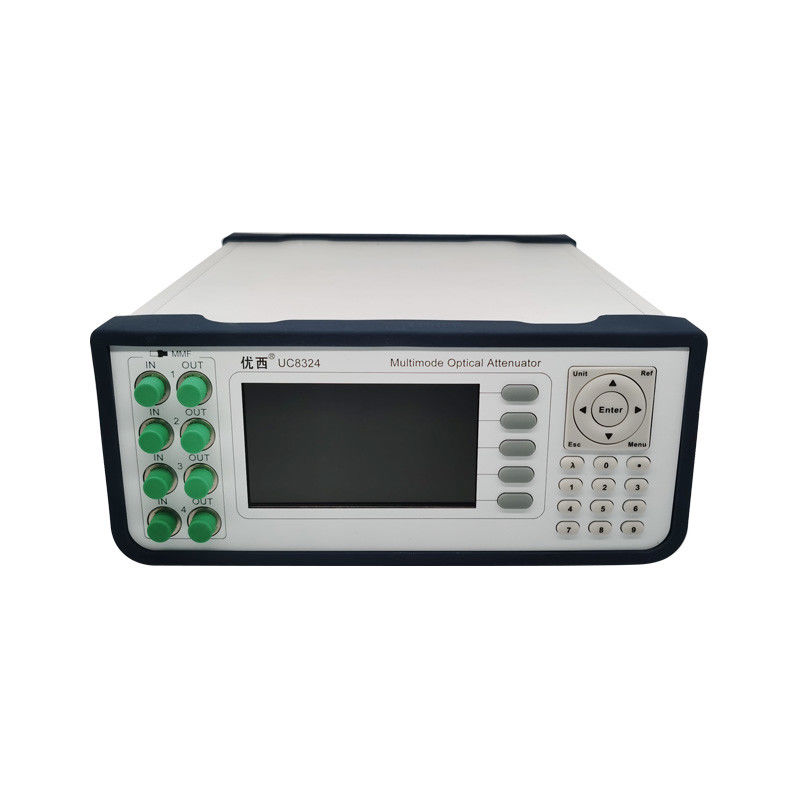

Multimode Desktop Variable Optical Attenuator SMF Fiber

I'm Online Chat Now

Multimode Desktop Variable Optical Attenuator SMF Fiber

Multimode Desktop Variable Optical Attenuator SMF Fiber
Multimode Desktop Variable Optical Attenuator SMF Fiber

Large Image :  Multimode Desktop Variable Optical Attenuator SMF Fiber

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8324
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

Multimode Desktop Variable Optical Attenuator SMF Fiber

Description
Product Name: Desktop Variable Optical Attenuator Fiber Type: SMF
Connector Type: FC/PC Connector Operation Temperature: 0~ +40℃
Power: 100~240 V Dimensions: 245 Mm W, 105 Mm H, 320 Mm D
Highlight:

Multimode Variable Optical Attenuator

,

SMF Fiber variable fiber attenuator

,

electronic variable optical attenuator

UC8324 multimode Desktop Variable Optical Attenuator





Model # UC8310-40 UC8310-60 UC8320
Attenuator Range 0 ~ 40 dB 0~60 dB 0~40 dB
Wavelength Range 1310 / 1490 /1550 /1610 nm 850 nm
Insertion Loss ≤ 1.2 dB ≤ 1.8 dB ≤ 1.5 dB
Fiber type Standard SMF MMF 50/62.5 adaptive
Connector Type FC/PC Connector
Attenuator Accuracy ≤ ± 0.1 dB typ. (0 ~ 40 dB) ≤ ± 0.2 dB
Repeatability ≤±0.015 dB ≤±0.05 dB
Attenuation Transition Speed 0.1 ~ 50 dB/s 0.1 ~ 35 dB/s
Polarization Depend Loss ≤0.25 dB (0 ~ 40 dB).
Return Loss > 40 dB > 30 dB
Recalibration Period 2 years
Operation Temperature 0~ +40℃
Storage Temperature -30~+80℃
Power 100~240 V
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0~5.0 kg





The UC8310/UC8320 Desktop Variable Optical Attenuator offers superior performance for channel balancing, power equalization, gain tilt and power adjustment of DWDM systems, EDFA, Interleaver, WSS, OPM, DPSK, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications.
The UC8310/UC8320 has a 0~40 dB of continuously variable high dynamic attenuation range, with a superb performance, a compact size, fast startup, and an affordable price. It provides single channel and dual or Four channel optical attenuator module options. This instrument also can provide high channel count solution up to 32 channels.



FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
