Product Details:
|
| Product Name: | Optical Attenuator Power Meter | Operation Mode: | Power Setting Mode |
|---|---|---|---|
| Range: | +5 ~ -70dBm | Resolution: | 0.001 DB |
| Repeatability: | ±0.02 DB | Calibration Wavelength: | 1270 / 1310 / 1490 /1550 /1610 Nm |
| Highlight: | Double Channel Optical Power Meter,fixed fiber optic attenuator 1270 nm,fiber optic power meter 1310nm |
||

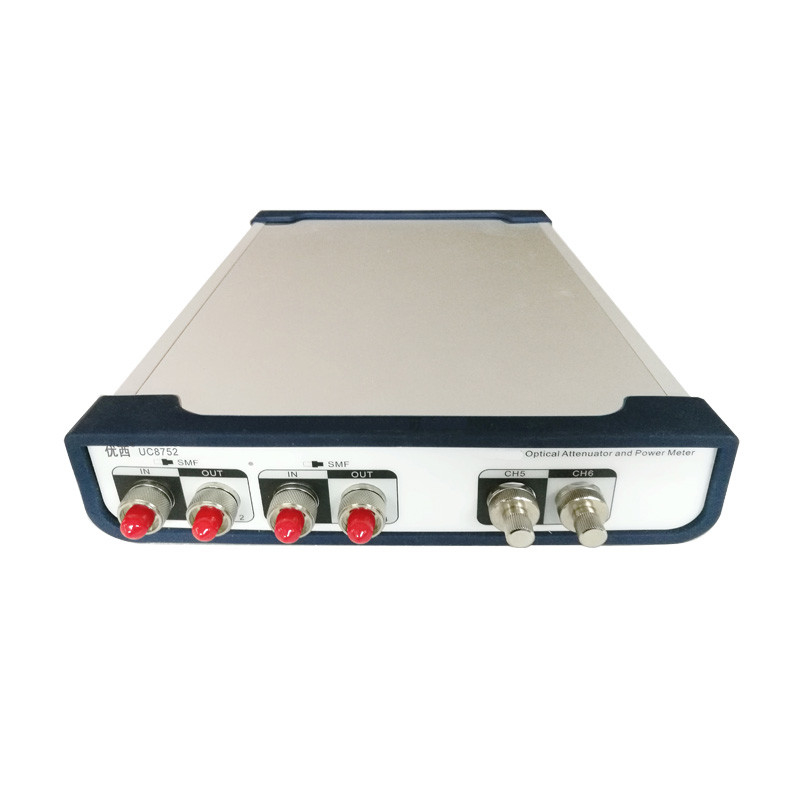

UC8752 Double Channel Optical Attenuator and Power Meter
| Model # | UC8751 / UC8752 | |
| Operation Mode | Attenuation Setting mode | Power Setting mode |
| Range | 0~45 dB | +5 ~ -70dBm |
| Resolution | 0.01 dB | 0.001 dB |
| Repeatability | ±0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) | ±0.02 dB |
| Calibration Wavelength | 1270 / 1310 / 1490 /1550 /1610 nm | |
| Fiber Type | 9/125 um single mode | SMF and MMF adaptive |
| Connector Type | FC/UPC Connector | FC/SC/LC Option |
| Insertion Loss | ≤1.2 dB | |
| Accuracy (By Optical Power Monitoring) | ± 0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) | ±0.02 dB |
| Averaging time of monitor PM | 2 ms ~ 1 s | |
| Settling Time | 100ms | |
| Attenuation Transition Speed | 0.1 ~ 50 dB/s | |
| Return Loss | > 45 dB | |
| Maximum safe input power | +20dBm | +5dBm |
| Recalibration Period | 2 years | |
| Operation Temperature | 0～ +40℃ | |
| Storage Temperature | -30～+80℃ | |
| Power | 100~240 V | |
| Dimensions | 235mm W, 55mm H, 320 mm D | |
| Weight | 3.0 kg | |
Applications
Optical Transceiver Testing
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized;
In the sensitivity measurement of the optical receiving module, a parallel, fast and accurate optical power input is provided;
Optical power control stability time 100 ms, greatly improve test efficiency.
Integrated test of optical network
When integrating and testing network equipment to test network transmission performance and network management.
Features
Fast, accurate settings of attenuation and optical power, Set time: 100 ms
Built in high-precision OPM ensures the stability and accuracy.
Simple and intuitive graphical user interface, multi-channel data preview, test status at a glance.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
