4Ch Multimode Power Adjustable 850nm laser optical source

I'm Online Chat Now

4Ch Multimode Power Adjustable 850nm laser optical source

4Ch Multimode Power Adjustable 850nm laser optical source
4Ch Multimode Power Adjustable 850nm laser optical source

Large Image :  4Ch Multimode Power Adjustable 850nm laser optical source

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8124P-85
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+per month

4Ch Multimode Power Adjustable 850nm laser optical source

Description
Highlight:

4Ch laser optical source

,

Adjustable 850nm laser light source UC

,

Multimode laser optical source

U8124P-85 4Ch Multimode power adjustable 850nm light source



Model # U8124P-85
Device Package TO
Optional Wavelength 850 nm
Wavelength Accuracy ± 3 nm
Output Power 1.0 mW
Power Adjustable Range 0.5~2.0 mW
Connector Type FC/APC
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB  0.5 nm

Output Power Stability within 15mins

≤±0.05 dB

Output Power Stability within 8 hrs

±0. 1 dB
SMSR > 35 dB
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 245 mm W, 105 mm H, 320 mm D
 Weight 3.0 kg

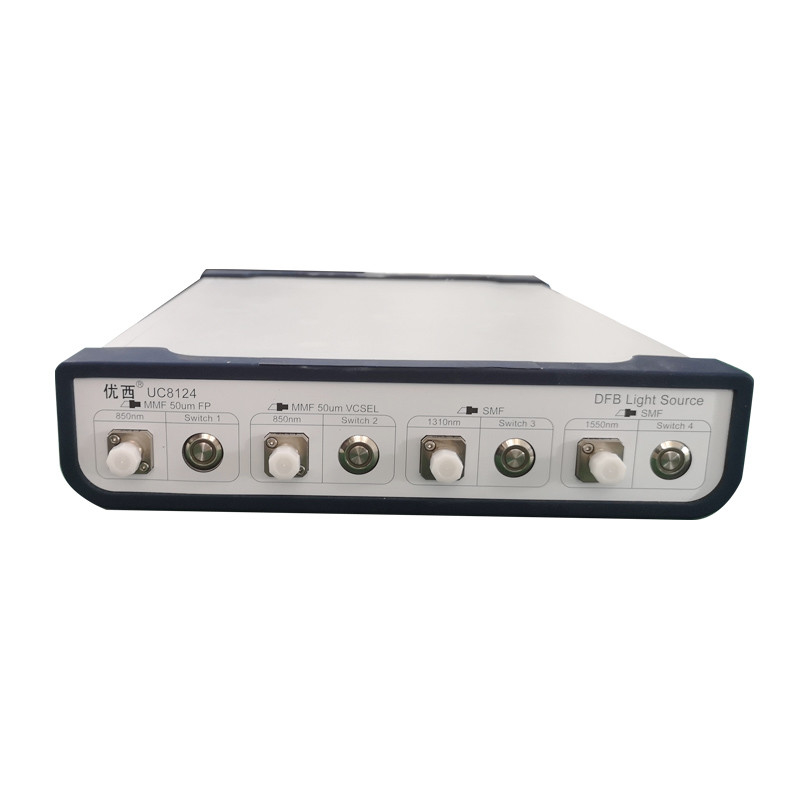

U8124p-85 is a customized 4-channel multi-mode power fine-tuning 850nm light source, featuring stable power output, fast startup, and small range adjustment of output power by pressing buttons on the panel. Light source equipment can provide multiple channels of fixed wavelength light source output signal. Youxi instruments can also customize 850, 980, 1250,1270... 1610,1625 nm, any two or four or multiple wavelength combination of light source equipment. (Equipment appearance picture is only for reference)



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
