405nm Special Wavelength Laser Source FC APC Connector

I'm Online Chat Now

405nm Special Wavelength Laser Source FC APC Connector

405nm Special Wavelength Laser Source FC APC Connector
405nm Special Wavelength Laser Source FC APC Connector

Large Image :  405nm Special Wavelength Laser Source FC APC Connector

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8131-405
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs+per month

405nm Special Wavelength Laser Source FC APC Connector

Description
Highlight:

405nm Special Wavelength Laser Source

,

APC Connector laser lab source

,

Laser Source FC Connector UC

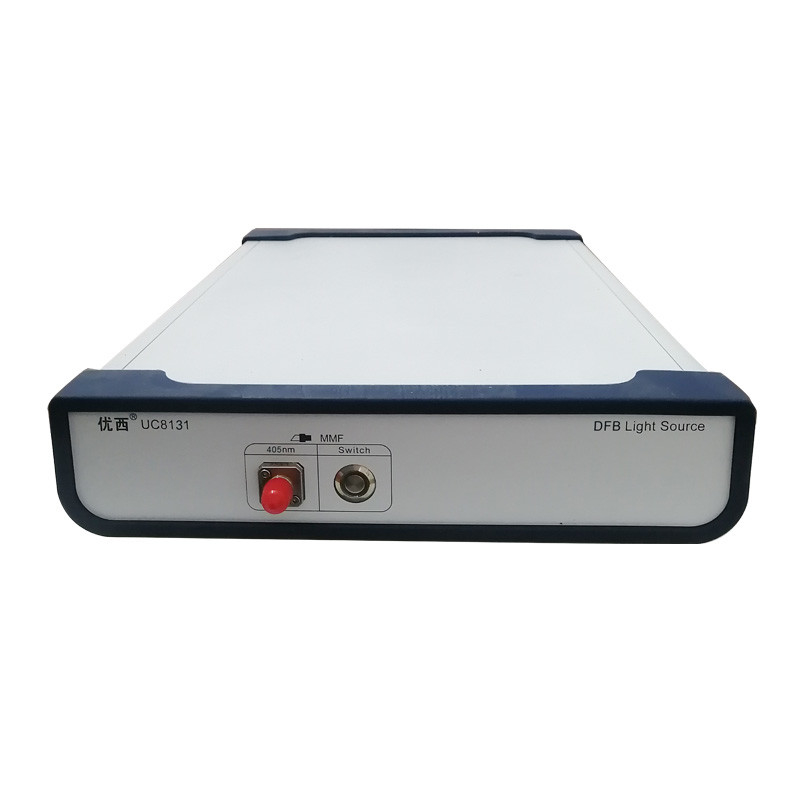

U8131 405nm Special wavelength Laser Source



Model # U8131-405
Device Package Butterfly
Optional Wavelength 405
Wavelength Accuracy ± 5 nm
Output Power ≥100 mW
Connector Type FC/APC( Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB  0.5 nm

Output Power Stability within 15mins

≤ ± 0.1 dB

Output Power Stability within 8 hrs

 ± 0.2 dB
SMSR 40 dB
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 2.0 kg





U8131 405 nm Special wavelength laser light source, It has the characteristics of large output power, small volume, quick start and so on. Light source equipment provides laser output at fixed wavelengths for multiple channels. Guangzhou UC can also customize other wavelengths or two / four or more wavelength combinations according to customer requirements.
