4 Channel LanWDM Light Source Wavelength Accuracy 1 nm

I'm Online Chat Now

4 Channel LanWDM Light Source Wavelength Accuracy 1 nm

4 Channel LanWDM Light Source Wavelength Accuracy 1 nm
4 Channel LanWDM Light Source Wavelength Accuracy 1 nm

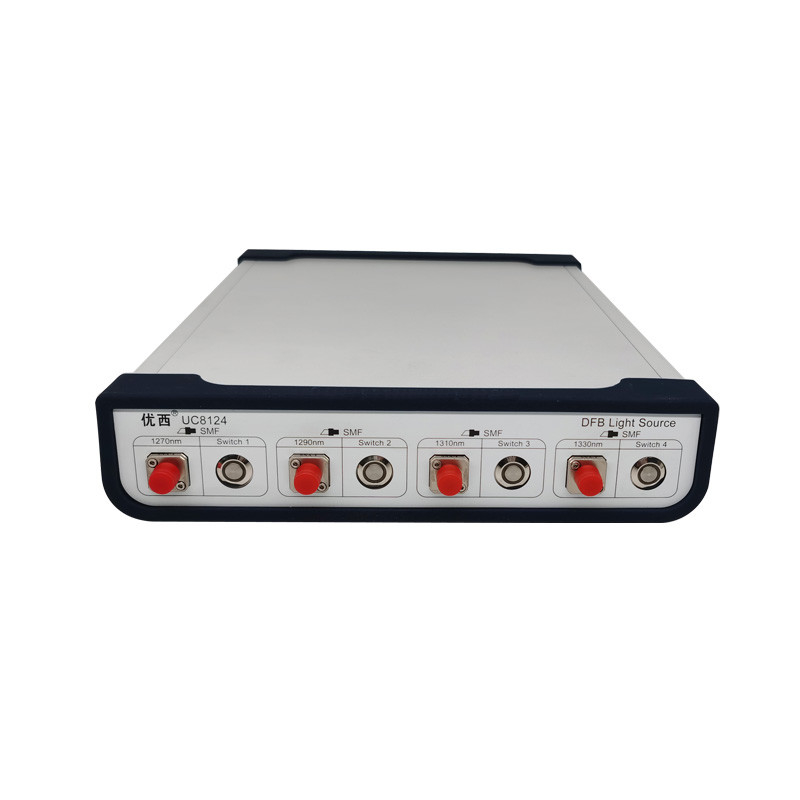

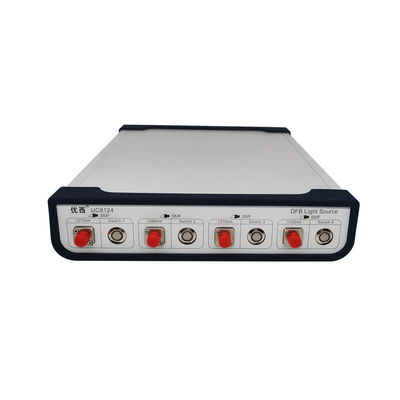

Large Image :  4 Channel LanWDM Light Source Wavelength Accuracy 1 nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8124-L1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1pcs+per month

4 Channel LanWDM Light Source Wavelength Accuracy 1 nm

Description
Highlight:

UC 4 Channel LanWDM Light Source

,

1311nm dfb lasers

,

1331nm LanWDM Light Source

UC8124-L1 4Channel LanWDM Light Source





Model # U8124 U8134
Device Package TO Butterfly
Optional Wavelength 1271/1291/1311/1331
Wavelength Accuracy ± 1 nm ± 0.5 nm
Output Power ≥1.0mW ≥8.0mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB < 0.5 nm

Output Power Stability within 15mins

≤±0.01 dB ≤±0.005 dB

Output Power Stability within 8 hrs

≤±0. 05 dB
SMSR > 40 dB
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg





U8124/U8134 4Channel laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.

U8124/U8134 4Channel laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 1271, 1291, 1311, 1331nm.
