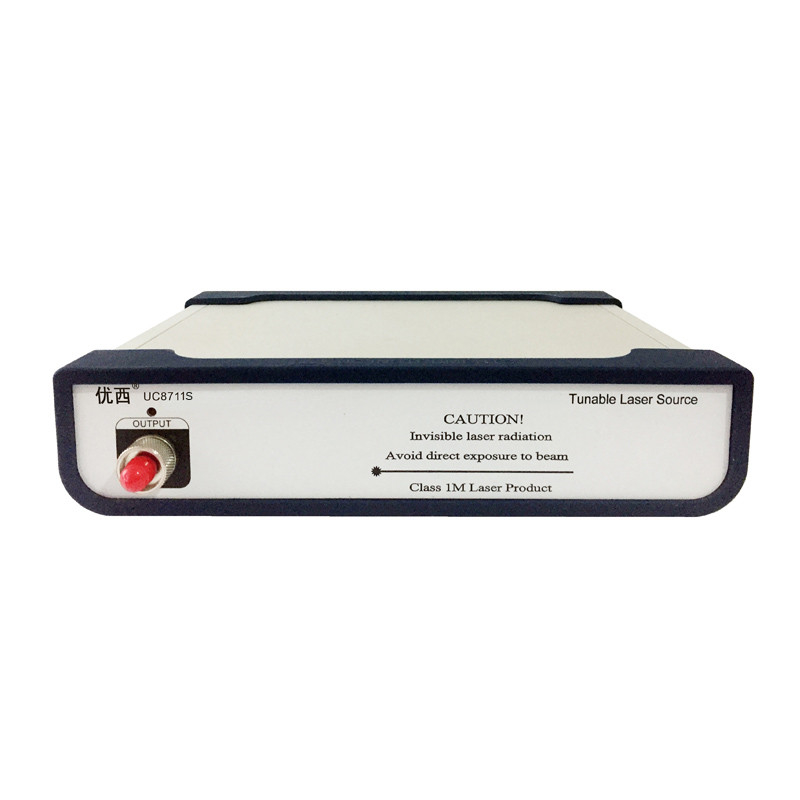

1570nm Center Wavelengths Tunable Laser Source Sweep Modules CL Band

1570nm Center Wavelengths Tunable Laser Source Sweep Modules CL Band
1570nm Center Wavelengths Tunable Laser Source Sweep Modules CL Band

Large Image :  1570nm Center Wavelengths Tunable Laser Source Sweep Modules CL Band

Product Details:
Place of Origin: CHINA
Brand Name: UC
Model Number: UC8711S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

1570nm Center Wavelengths Tunable Laser Source Sweep Modules CL Band

Description
Product Name: Tunable Laser Source Center Wavelengths Available (nm): 1570
Wavelength Tuning Range (nm): 80~85 Nm Tunable Band Range (nm): 1525~1610
Output Power: ≥ 7dBm Wavelength Resolution: 1.0 Pm
Band Option: CL Band Interface: RS232 Or USB
Highlight:

1570nm Tunable Laser Source

,

adjustable light source 1570nm

,

Tunable Laser Source CL Band UC

UC8711S PC Controlled Tunable Laser Source Sweep Modules



Model # UC8712
Band Option O C L CL
Center Wavelengths Available (nm) 1280/1310/1340 1550 1590 1570
Wavelength Tuning range (nm) 30~35 nm 40~45 nm 40~45 nm 80~85 nm
Tunable Band Range (nm) 1260~1360 1525~1568 1566~1610 1525~1610
Output Power ≥ 5dBm ≥ 13dBm ≥ 10dBm ≥ 7dBm
Wavelength resolution 1.0 pm
Absolute wavelength accuracy ±10 pm, Typ. < 5 pm
Relative wavelength accuracy ± 5 pm, Typ. ± 2 pm
Wavelength repeatability ±2 pm, Typ. ± 1 pm
Wavelength stability ≤ ± 2 pm
Tuning speed ≤0.002 s per step
Power stability ± 0.01dB, 15min;±0.05,1 hour;±0.1 dB, 24 hours.
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Power Over wavelength Ripple 0.3dB typ., 0.5dB max.
Side-mode Suppression ratio ≥ 45 dB
Output optical interface PM, FC/APC  or FC/PC connector
Interface RS232 or USB
Power 3.3 V; 4.5A
Dimensions 235 mm W, 55mm H, 165 mm D
Weight 1.0 kg





UC8712 Tunable Laser Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.

UC8712 module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide O band,C band, L band, or C + L band options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
