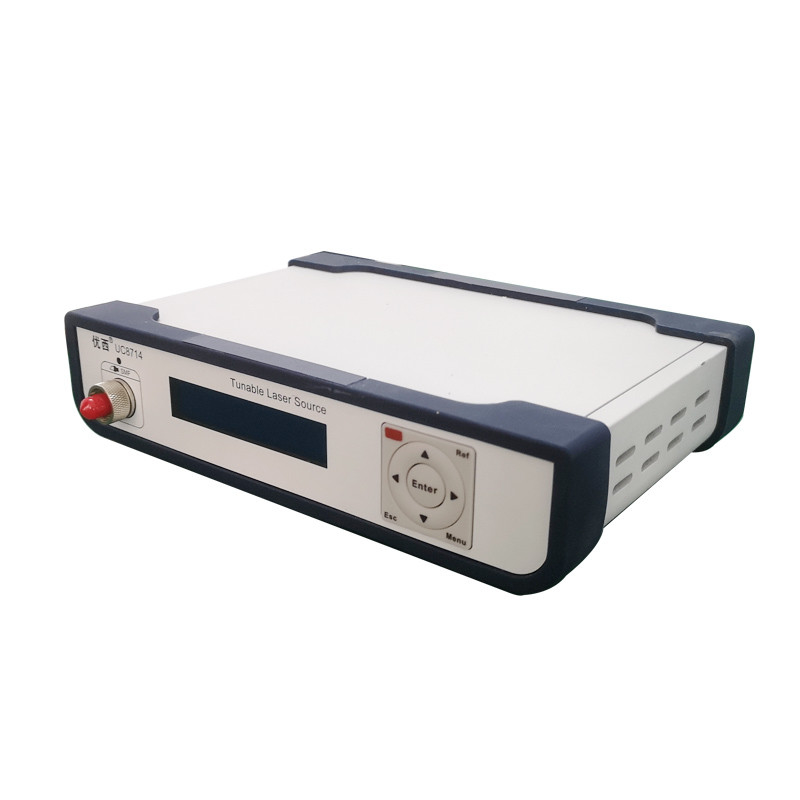

Large Image :  PC Controlled L Band Tunable Laser Source Sweep Modules

Product Details:
Place of Origin: CHINA
Brand Name: YOUCII
Certification: CU,IOS
Model Number: UC8712S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

PC Controlled L Band Tunable Laser Source Sweep Modules

Description
Product Name: L Band Tunable Laser Source Band Option: L Band
Center Wavelengths Available (nm): 1590 Wavelength Tuning Range (nm): 40~45 Nm
Tunable Band Range (nm): 1566~1610 Output Power: ≥ 10dBm
Highlight:

1590nm Tunable Laser Source UC

,

wavelength tunable laser 45 dB

,

Tunable Laser Source Sweep Modules

PC Controlled L Band Tunable Laser Source Sweep Modules





specification

Model # UC8712
Band Option O C L CL
Center Wavelengths Available (nm) 1280/1310/1340 1550 1590 1570
Wavelength Tuning range (nm) 30~35 nm 40~45 nm 40~45 nm 80~85 nm
Tunable Band Range (nm) 1260~1360 1525~1568 1566~1610 1525~1610
Output Power ≥ 5dBm ≥ 13dBm ≥ 10dBm ≥ 7dBm
Wavelength resolution 1.0 pm
Absolute wavelength accuracy ±10 pm, Typ. < 5 pm
Relative wavelength accuracy ± 5 pm, Typ. ± 2 pm
Wavelength repeatability ±2 pm, Typ. ± 1 pm
Wavelength stability ≤ ± 2 pm
Tuning speed ≤0.002 s per step
Power stability ± 0.01dB, 15min;±0.05,1 hour;±0.1 dB, 24 hours.
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Power Over wavelength Ripple 0.3dB typ., 0.5dB max.
Side-mode Suppression ratio ≥ 45 dB
Output optical interface PM, FC/APC  or FC/PC connector
Interface RS232 or USB
Power 3.3 V; 4.5A
Dimensions 235 mm W, 55mm H, 165 mm D
Weight 1.0 kg





UC8712 Tunable Laser Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.

UC8712 module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide O band,C band, L band, or C + L band options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.



Power requirements

   Instruments comply with overvoltage Class II regulations. The working voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the working voltage is 115V, the maximum current consumption is 230mA; When the working voltage is 230V, the maximum current consumption is 120mA.

   In accordance with international safety standards, the instrument is equipped with a 3-core power cord that meets the national standard. Connect the power cable only to a power socket with ground protection.
