0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

I'm Online Chat Now

0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel
0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

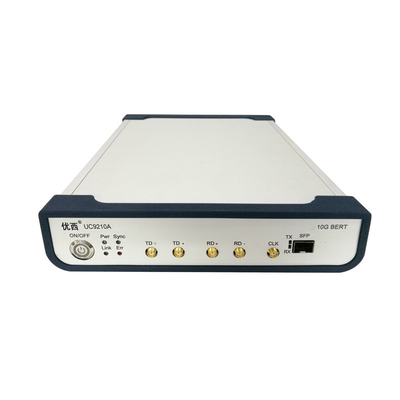

Large Image :  0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9210A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+per month

0.622 Gbps 1.25 Gbps 2.125 Gbps Optical Modules BERT Tester One SFP Optical Channel

Description
Product Name: Optical Modules BERT Tester Model: U9210A
Patterns: PRBS7, PRBS9, PRBS15, PRBS23, PRBxS31 Signal Output Amplitude (single-ended): 800 MV
Data Rate: 0.622 Gbps 1.25 Gbps 2.125 Gbps Brand: UC
Highlight:

2.125 Gbps BERT Tester

,

0.622 Gbps electronic measuring device

,

1.25 Gbps BERT Tester

U9210A 10G Full Rate BERT



No. Parameter Min Type  Max  Unit
1 Data rate 0.622

0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,

5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,

11.09,11.32,11.7

11.7 Gbps
2 Patterns   PRBS7,PRBS9,PRBS15,PRBS23,PRBxS31
3 Rise and fall times(20% to 80%)   18 23 ps
4 Pattern Inversion   Supports signal inversion at the transmitter and receiver
5 Signal output amplitude (single-ended) 200 800 1000 mV
6 Data output jitter(RMS)   1.5(10.3125G under)   ps
7 Data input and output interface   Differential, AC Coupled, 50 Ohm Impedance, SMA
8 Clock Out 100 156.25 156.25 MHz
9 Data signal input sensitivity (single-ended)   0.1   Vpp
10 Data Output Eye Crossover 50 52 54 %
11 Operating temperature 10 25 50 °C



Performance character:
One SFP optical channel and One electric channel, Two channels synchronous input and output, Error Code testing can be independent.
Support for continuous error detection and timing error detection.
Support Full Rate from 622M up to 11.7Gbps;
Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
One channels low jitter clock output, the optical channel and the electric channel share one clock, the two channels clock synchronization.
Communication Mode USB HID or USB-COM
