220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables

I'm Online Chat Now

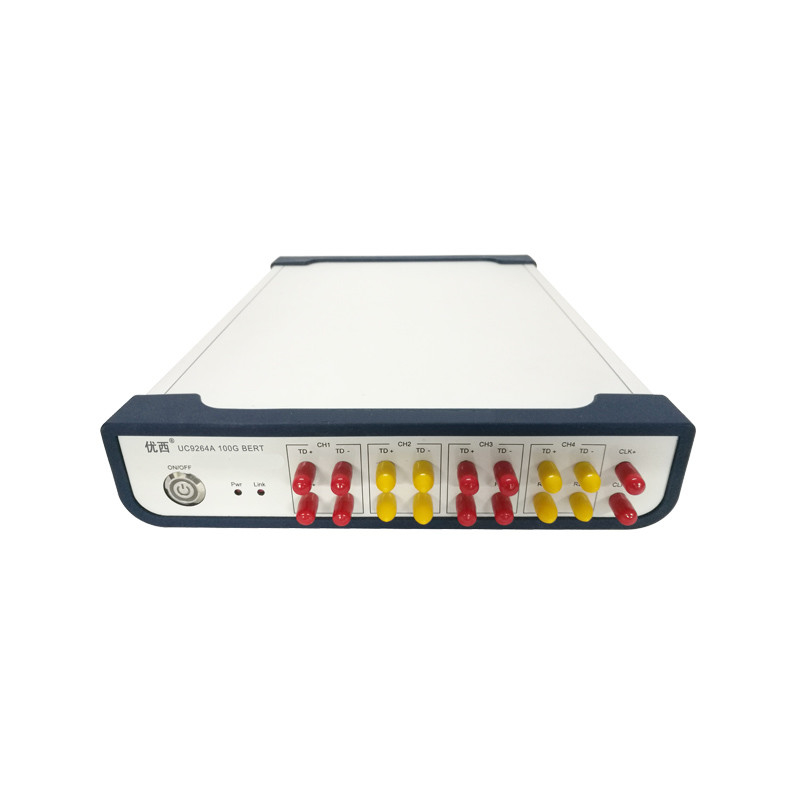

220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables

220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables
220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables

Large Image :  220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9264A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 pcs+per month

220V 20W 100G BERT Tester For Optical Devices HighSpeed Cables

Description
Product Name: 100G BERT Tester Model: U9264A
Customized: Available Dimensions: 235 X 55 X 320 Mm
Connector Type: SMA Output Level Range: 200 -1100 MVppd
Highlight:

20W BERT Tester Optical Devices

,

HighSpeed Cables electronic test equipment

,

100G BERT Tester

U9264A 100G BERT



Parameter Min Type Max Unit
General parameters
Supply voltage 100 220 240 V AC, 50-60HZ
Power consumption 20 W
Operating temperature range 0   55
Dimensions 235 x 55 x 320 mm
BERT(ED)
Input level range 100 1200 mVppd differential input, AC coupled
Input Rate Range 9.953 29 Gbps
  100 ohm differential
Connector type SMA   differential, front panel
Supported pattern PRBS 2n-1, n=7, 9, 10, 11, 15,23, 31, Up to 20 bits/Ch, user defined RATE 9.953~14.5Gbps
PRBS 2n-1, n=9, 15, 31 RATE 25~29Gbps
Programmable Pattern Generator (PPG)
Output level range 200 1100 mVppd differential input, AC coupled
Output rate range 9.953 29 Gbps 9.953~14.5 / 25~29Gbps
Output Impedance 100 Ohm differential





An overview of the

U9264A is a 100G product error code tester. It can be used in the r&d and production testing of optical devices, high-speed cables, optical modules and communication systems. Supports multiple rates from 9.953Gbps to 14.5Gbps and from 25 Gbps to 29Gbps.

application

apply to all kinds of light module (QSFP28 CFP2, CFP4, SFP28, SFP +, QSFP +, CFP) and the error testing subsystem

Lent works for bit error testing of active, passive, and active optical cables

Lent acts as a signal source for a 10G, 100G test platform



features

Lent supports multiple speeds between 9.953Gbps and 14.5Gbps, and between 25 and 29Gbps.

According to the principle, four programmable code generators and four error code detectors are integrated.

Ensures the internal clock module is integrated.

A clock recovery unit is integrated into the bill error detector.
