Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT

I'm Online Chat Now

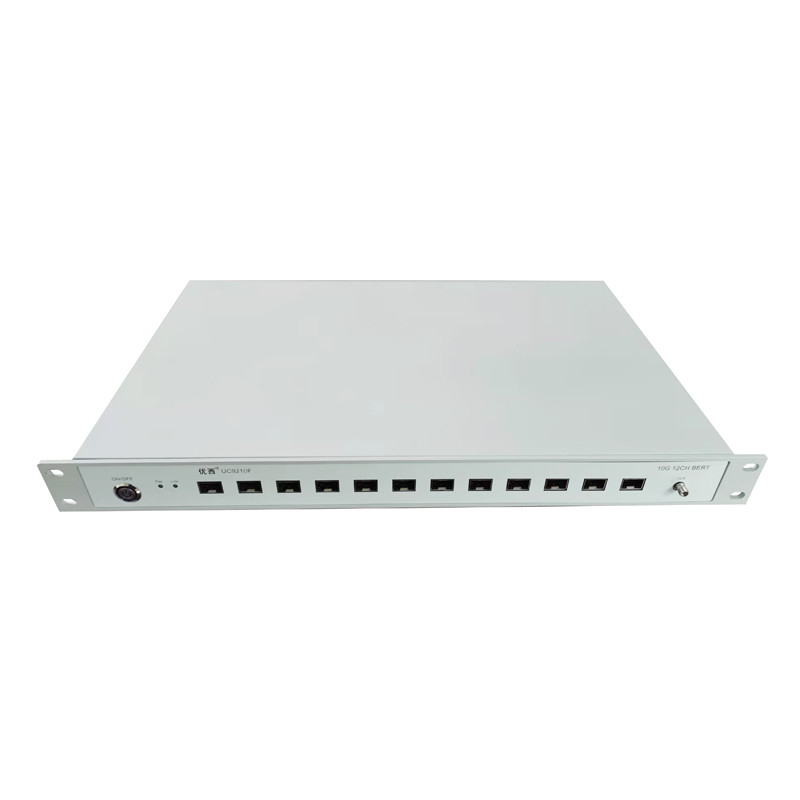

Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT

Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT
Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT

Large Image :  Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9210F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 7 pcs+per month

Twelve Optical Channels Electronic Measuring Device 10G Full Rate BERT

Description
Product Name: 10G Full Rate BERT Channels: Twelve
Patterns: PRBS9, PRBS15 Rise And Fall Times(20% To 80%): 18 Ps
Signal Differential Output Amplitude: 1000mV Clock Out: 156.25MHz
Highlight:

Twelve Channels electronic measuring device

,

Full Rate BERT

,

electronic measuring device 10G

U9210E/F 12Chs 10G Full Rate BERT



No. Parameter Min Type Max Unit
1 Data rate 0.6144

0.614,0.622,1.25,2.5,5.0,9.953,10.00,

10.312510.52,11.09,11.32,11.7,12,

12.5,14.025, 14.5,15 etc.

15.0 Gbps
2 Channels   12(12 optical port)
3 Patterns   PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall times(20% to 80%)   18 23 ps
5 Pattern Inversion   Supports signal inversion at the transmitter and receiver
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter(RMS)   1.5(10.3125G under)   ps
8 Data input and output interface   Differential, AC Coupled, 50 Ohm Impedance, SMA
9 Clock Out 100 156.25 156.25 MHz
10 Data Signal Input Sensitivity   50   mVpp
11 Data output eye diagram crossing point (differential) 49 50 54 %
12 USB HID response time   10   ms
13 Operating temperature 10 25 50 °C
14 Working voltage (AC) 180 220 250 V





Performance character:
U9210F 12channels Optical channel.
Support for continuous error detection and timing error detection.
Support Full Rate from 622M up to 11.7Gbps;
Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
Communication Mode USB HID or USB-COM.
