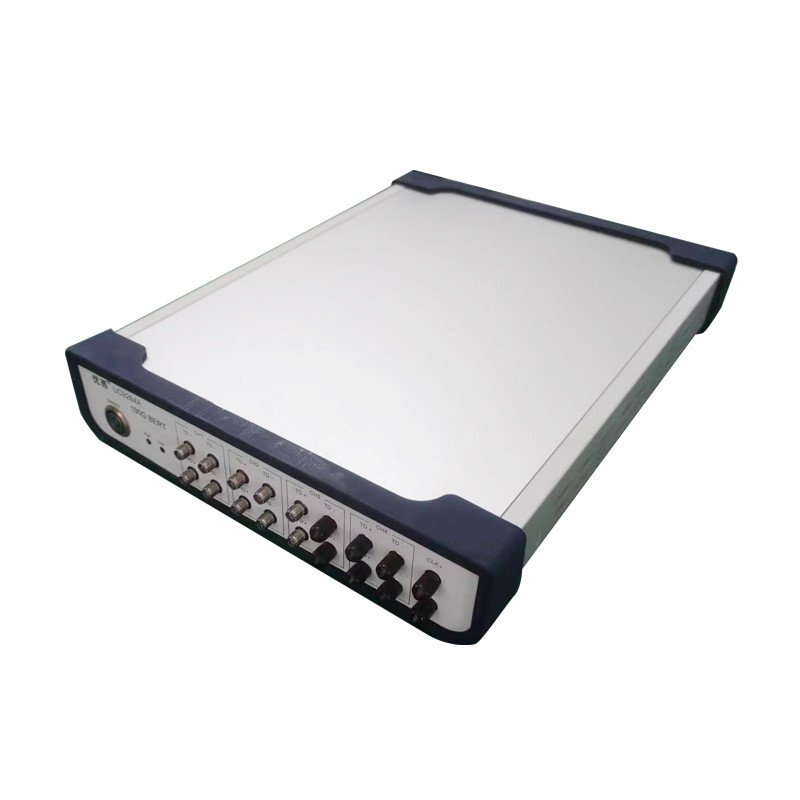

Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz

I'm Online Chat Now

Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz

Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz
Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz

Large Image :  Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9210C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+per month

Four Channels Full Rate BERT Tester 11.7 Gbps 156.25 MHz

Description
Product Name: Full Rate BERT Tester Data Rate: 11.7 Gbps
Clock Out: 156.25 MHz Patterns: PRBS15,PRBS23,PRBS31
SB HID Response Time: 10ms Brand: YOUCII
Highlight:

BERT Tester 156.25 MHz

,

BERT Instrument 11.7 Gbps

,

BERT Tester 11.7 Gbps

U9210C 4Channels 10G Full rate error code meter





No. Parameter Min Type Max Unit
1 Data rate 0.6144

0.614,0.622,1.25,2.5,5.0,9.953,10.00,

10.312510.52,11.09,11.32,11.7,12,

12.5,14.025, 14.5,15 etc.

15.0 Gbps
2 Channels   5 (4 electrical ports, 1 optical port, support PG and ED)
3 Patterns   PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall times(20% to 80%)   18 23 ps
5 Pattern Inversion   Supports signal inversion at the transmitter and receiver
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter(RMS)   1.5(10.3125G under)   ps
8 Data input and output interface   Differential, AC Coupled, 50 Ohm Impedance, SMA
9 Clock Out 100 156.25 156.25 MHz
10 Data Signal Input Sensitivity   50   mVpp
11 Data output eye diagram crossing point (differential) 49 50 54 %
12 USB HID response time   10   ms
13 Operating temperature 10 25 50 °C
14 Working voltage (AC) 180 220 250 V





1. Four-channel parallel PG and ED; Single-ended clock output.

2. PG and ED support rates ranging from 0.622 to 11.7 Gbps (up to 15G, optional).

3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

4. Support continuous bit error detection and timed bit error monitoring.

5, communication mode: USB HID (drive free) or USB-COM.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
