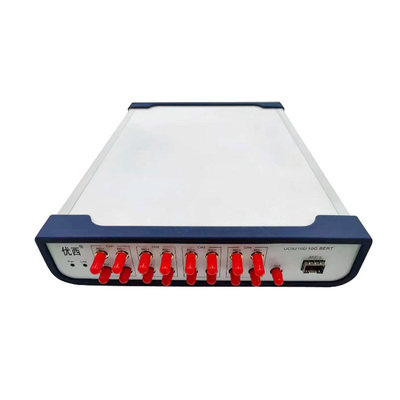

4 Electrical Port 1 Optical Port Error Code Meter 10G Full Rate

4 Electrical Port 1 Optical Port Error Code Meter 10G Full Rate
4 Electrical Port 1 Optical Port Error Code Meter 10G Full Rate

Large Image :  4 Electrical Port 1 Optical Port Error Code Meter 10G Full Rate

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9210D
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs+per month

4 Electrical Port 1 Optical Port Error Code Meter 10G Full Rate

Description
Product Name: 1 Optical Port Error Code Meter Channels: 5
Patterns: PRBS31 Working Voltage (AC): 180V - 250V
Data Signal Input Sensitivity: 50 MVpp OEM: Available
Highlight:

1 Optical Port Error Code Meter

,

4 Electrical Port BERT

,

Error Code Meter 10G Full Rate

U9210D 4 Electrical port 1 Optical port 10G Full rate error code meter



No. Parameter Min Type Max Unit
1 Data rate 0.6144

0.614,0.622,1.25,2.5,5.0,9.953,10.00,

10.312510.52,11.09,11.32,11.7,12,

12.5,14.025, 14.5,15 etc.

15.0 Gbps
2 Channels   5 (4 electrical ports, 1 optical port, support PG and ED)
3 Patterns   PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall times(20% to 80%)   18 23 ps
5 Pattern Inversion   Supports signal inversion at the transmitter and receiver
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter(RMS)   1.5(10.3125G under)   ps
8 Data input and output interface   Differential, AC Coupled, 50 Ohm Impedance, SMA
9 Clock Out 100 156.25 156.25 MHz
10 Data Signal Input Sensitivity   50   mVpp
11 Data output eye diagram crossing point (differential) 49 50 54 %
12 USB HID response time   10   ms
13 Operating temperature 10 25 50 °C
14 Working voltage (AC) 180 220 250 V





1. Four-channel parallel PG and ED; Single-ended clock output.

2. One SFP optical port channel.

2. PG and ED support rates ranging from 0.622 to 11.7 Gbps.

3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

4. Support continuous bit error detection and timed bit error monitoring.

5, communication mode: USB HID (drive free) or USB-COM.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.



No. Parameter Min Type Max Unit
1 Data rate 0.6144

0.614,0.622,1.25,2.5,5.0,9.953,10.00,

10.312510.52,11.09,11.32,11.7,12,

12.5,14.025, 14.5,15 etc.

15.0 Gbps
2 Channels   12(12 optical port)
3 Patterns   PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall times(20% to 80%)   18 23 ps
5 Pattern Inversion   Supports signal inversion at the transmitter and receiver
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter(RMS)   1.5(10.3125G under)   ps
8 Data input and output interface   Differential, AC Coupled, 50 Ohm Impedance, SMA
9 Clock Out 100 156.25 156.25 MHz
10 Data Signal Input Sensitivity   50   mVpp
11 Data output eye diagram crossing point (differential) 49 50 54 %
12 USB HID response time   10   ms
13 Operating temperature 10 25 50 °C
14 Working voltage (AC) 180 220 250 V
