Product Details:
|
| Product Name: | Full Rate BERT Tester | Channels: | 12 Channels |
|---|---|---|---|
| Patterns: | PRBS23 | Signal Output Amplitude: | 200mV |
| Data Output Jitter(RMS): | 1.5ps | Model: | U9210E |
| Highlight: | BERT Tester 10G,10G error code tester,12 Channels BERT Tester |
||

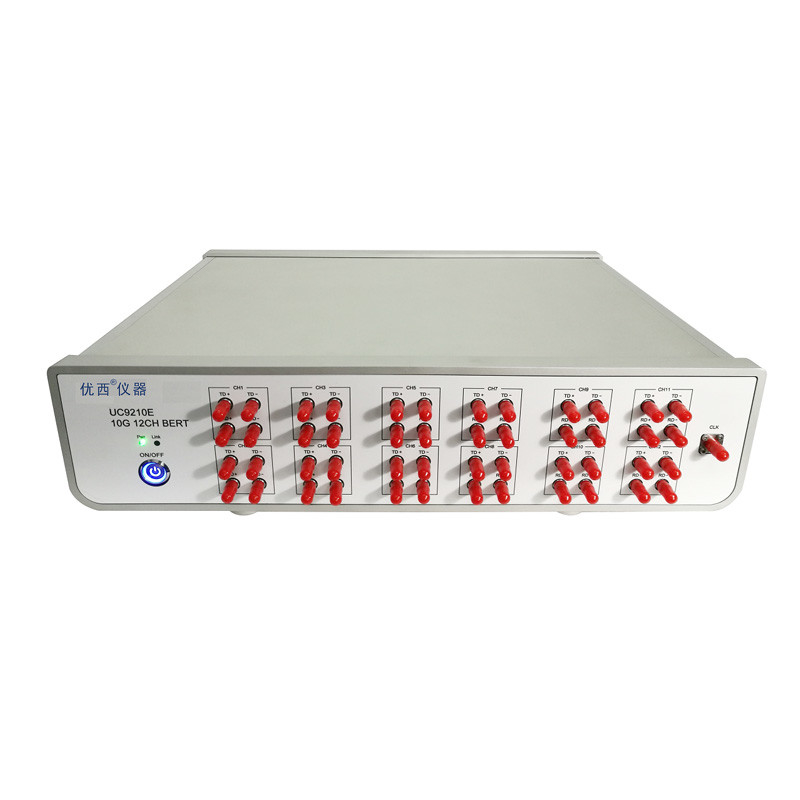

U9210E 10G 12CH Full Rate BERT
| No. | Parameter | Min | Type | Max | Unit |
| 1 | Data rate | 0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0, 6.144,6.25,7.5,8.5, 9.953,10.00,10.3125,10.52, 10.709,11.09,11.32,11.7,14.025,15 |
15 | Gbps |
| 2 | Patterns | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 | Rise and fall times(20% to 80%) | 18 | 23 | ps | |
| 4 | Pattern Inversion | Supports signal inversion at the transmitter and receiver | |||
| 5 | Signal output amplitude (single-ended) | 200 | 800 | 1000 | mV |
| 6 | Data output jitter(RMS) | 1.5(10.3125G under) | ps | ||
| 7 | Data input and output interface | Differential, AC Coupled, 50 Ohm Impedance, SMA | |||
| 8 | Clock Out | 100 | 156.25 | 156.25 | MHz |
| 9 | Data Signal Input Sensitivity | 0.1 | Vpp | ||
| 10 | Data output eye diagram crossing point | 50 | 52 | 54 | % |
| 11 | Working voltage | 10 | 25 | 50 | °C |
Performance character:
12 electric channels, all channels synchronous input and output, Error Code testing can be independent.
Support for continuous error detection and timing error detection.
Support Full Rate from 622M up to 15Gbps；
Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
One channels low jitter clock output.
Communication Mode USB HID.
