10G SFP Evaluation Board SFP+ Test circuit board

Description

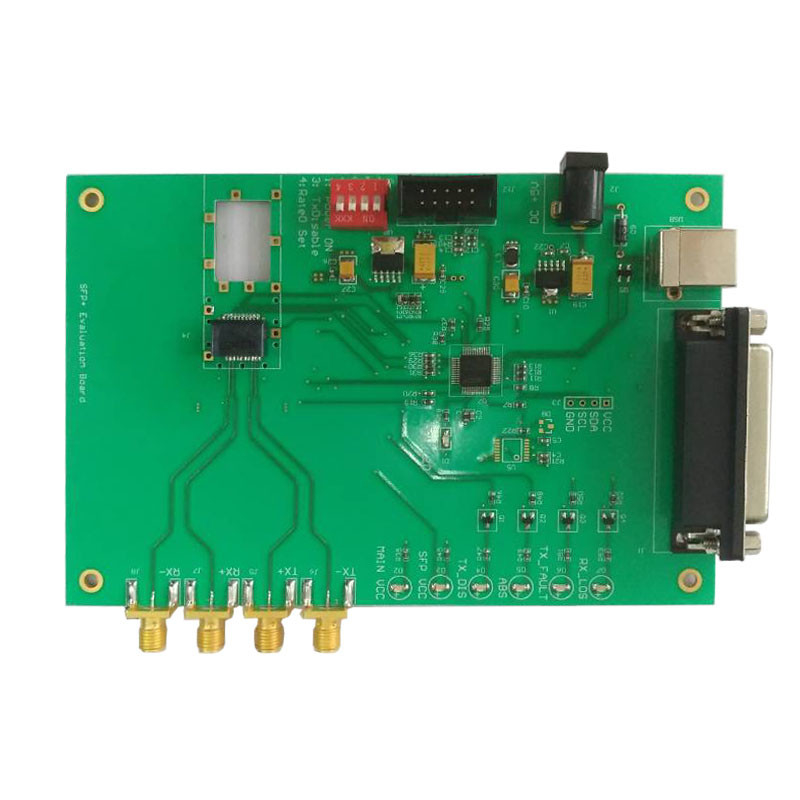

Product Name: 10G SFP Evaluation Board Model: U9601A
Channel: Single Port: Parallel Port
Communication Interface: USB Function: Compatible With 11.7g And Below All Rates Of The Module
Highlight:

10G SFP Evaluation Board

,

SFP+ test circuit board

,

single channel SFP Evaluation Board

U9601A 10G SFP+ Test circuit board



SFP+ test board type and communication interface type:

1. SFP+ single-channel test board adopts parallel port and USB communication interface.

2. parallel port and USB two kinds of communication interface to simulate I2C, rate control is 100Kbps, easy to compatible with high and low speed I2C module.

Two, SFP+ test board functions:

1. SFP+ single-channel test board functions are: compatible with 11.7g and below all rates of the module;

2. parallel port and USB two communication interfaces to achieve I2C communication; Hardware control module TxDisable and hardware monitoring LOS, TxFault state;

3. real-time temperature monitoring, real-time transmitter current and receiver current measurement monitoring and overcurrent protection; Pull bias voltage output control, the output voltage range from 2.9-3.8V continuously adjustable output, suitable for module pull bias voltage test, high output voltage accuracy and error is less than 5mV, is not affected by the total external module current size;

4. hardware and software modules TxDisable and Power OnOFF (switch electricity), hardware and software arbitrary independent control.

5. The USB port supports independent power supply (when the current of the optical module is less than 100mA).

Three, matters needing attention:

1. Note that there are also devices under and behind the PCBA board, so it is not allowed to place the conductive objects on the power test, so as not to short-circuit and burn the board.

2. the input voltage is adjusted to 5V, do not adjust the voltage high or reverse, so as not to burn the board.

3. When testing the 10G module, the TX and RX signal wires supporting high-speed signals need to use signal cables supporting 18G frequency.
