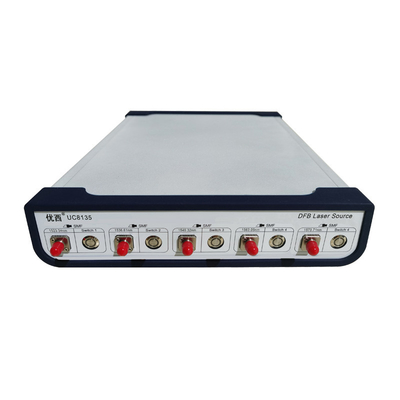

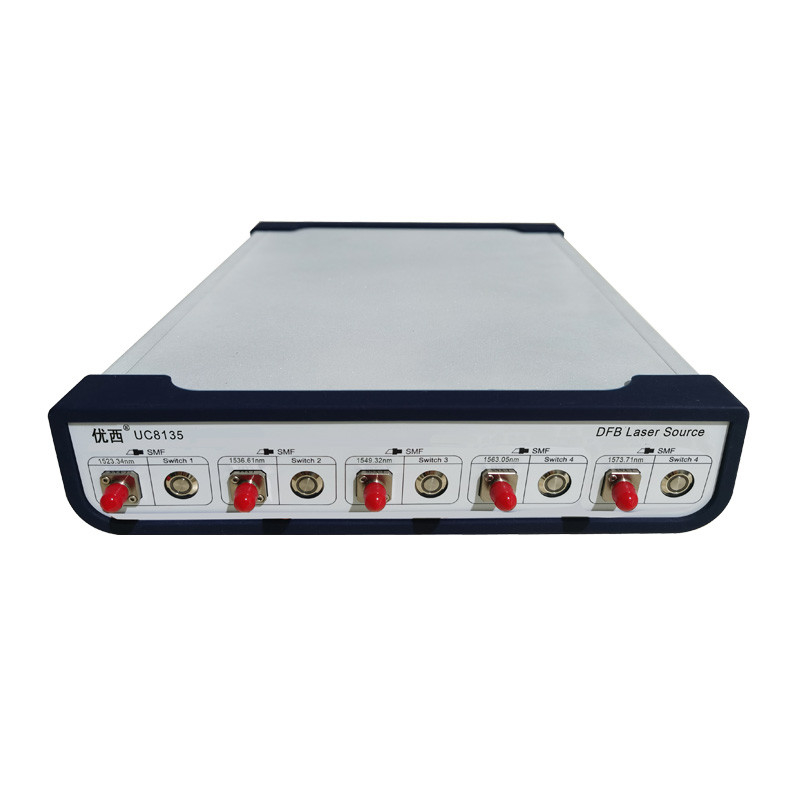

5 Channels DFB Laser Source Wavelength Optional

I'm Online Chat Now

5 Channels DFB Laser Source Wavelength Optional

5 Channels DFB Laser Source Wavelength Optional
5 Channels DFB Laser Source Wavelength Optional

Large Image :  5 Channels DFB Laser Source Wavelength Optional

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8125
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

5 Channels DFB Laser Source Wavelength Optional

Description
Color: Silver Material: Metal
Device Package: TO Optional Wavelength: 850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 Nm Etc
Wavelength Accuracy: ± 3 Nm Output Power: ≥1.0mW
Connector Type: FC/APC ( Other Adaptor Can Be Customized) SMSR: > 35 DB (850/980nm)
Highlight:

5 Channels DFB Laser Source

,

1625 nm dfb lasers

,

1370nm DFB Laser Source UC

U8125 5 Channels DFB Laser Source Wavelength Is Optional High Cost Performance



Specification



Model # U8125
Device Package TO
Optional Wavelength

850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.

Wavelength Accuracy ± 3 nm
Output Power 1.0mW
Connector Type FC/APC ( Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB 0.5 nm
Output Power Stability within 15mins ≤±0.01 dB
Output Power Stability within 8 hrs ±0. 05 dB
SMSR > 35 dB (850/980nm),> 40 dB(1250nm etc.)
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg





U8121 multi-channel laser light source can be used for WDM device, HIGH precision WDM DWDM device, optical waveguide grating array AWG device, plane optical waveguide PLC device, optical amplifier EDFA and other general fiber optics measurement and application. Especially suitable for couplers and plane optical waveguide PLC components of mass production detection.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
