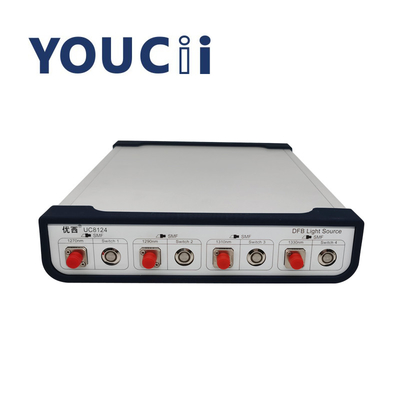

4 Channel DFB Light Source And Power Meter FC APC Connector Type

4 Channel DFB Light Source And Power Meter FC APC Connector Type
4 Channel DFB Light Source And Power Meter FC APC Connector Type

Large Image :  4 Channel DFB Light Source And Power Meter FC APC Connector Type

Product Details:
Place of Origin: CHINA
Brand Name: UC
Model Number: UC8124
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month
Contact Now

4 Channel DFB Light Source And Power Meter FC APC Connector Type

Description
Device Package: TO Optional Wavelength: 1271/1291/1311/1331
Operation Temperature: 0～ +40 ℃ Connector Type: FC/APC (Other Adaptor Can Be Customized)
Output Power Stability Within 15mins: ≤±0.01 DB Output Power Stability Within 8 Hrs: ≤±0. 05 DB
Optical Power Meter: Light Source And Power Meter
Highlight:

4 Channel DFB Light Source

,

APC Connector Type DFB Light Source

4 Channel DFB Light Source Wavelength Can Be Specified



4 Channel DFB Light Source And Power Meter FC APC Connector Type 0



   UC8124/UC8134 4Channel laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC production line application.

   UC8124/UC8134 4Channel laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 1271, 1291, 1311, 1331nm.




The power supply requirements
   The instrument complies with overvoltage class II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.





Specifications

Model # UC8124 UC8134
Device Package TO Butterfly
Optional Wavelength 1271/1291/1311/1331
Wavelength Accuracy ± 1 nm ± 0.5 nm
Output Power ≥1.0mW ≥8.0mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜ 0.5 nm

Output Power Stability within 15mins

 ≤±0.01 dB ≤±0.005 dB

Output Power Stability within 8 hrs

 ≤±0. 05 dB
SMSR ＞ 40 dB
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg







Tag:

4 Channel LanWDM Light Source,

3 Channels DFB Laser Source,

4Ch laser optical source
