Product Details:
|
| Optional Wavelength: | 850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 Nm Etc. | Connector Type: | FC/APC |
|---|---|---|---|
| Output Power Stability Within 15mins: | ≤±0.005 DB | Output Power Stability Within 8 Hrs: | ≤±0. 05 DB |
| Device Package: | Butterfly | Output Power: | ≥10.0mW |
| Highlight: | Dual Channel DFB Laser Source,1310nm DFB Laser Source |
||

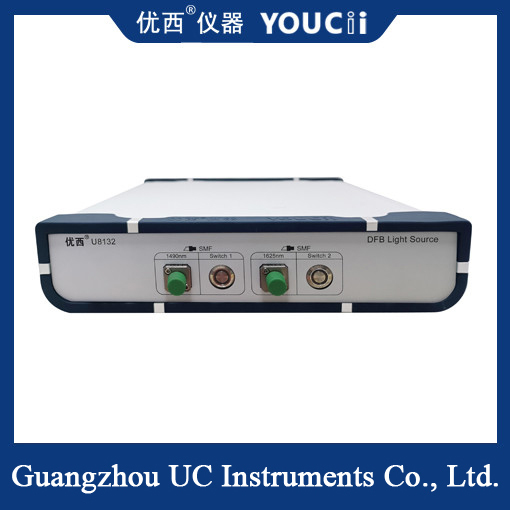

U8132 Dual Channel 850nm 980nm 1310nm 1550nm DFB Laser Source Butterfly Laser
The U813n multi-channel laser light source can be used in the measurement and application of WDM devices, DWDM devices with high precision WDM devices, AWG devices with optical waveguide grating array, planar optical waveguide PLC devices, optical amplifier EDFA and other general optical fiber optics, especially in the mass production and detection of couplers and planar optical waveguide PLC devices.
Particular point
The U813n multi-channel laser light source has the characteristics of high output stability, small size and fast start-up. Light source equipment can provide multiple channels of fixed wavelength light source output signal. Guangzhou Youxi can also be customized according to customer needs, 850, 980, 1250,1270... 1610,1625 nm, etc. Any two or four or more wavelength combination light source equipment.
Specification
| Model # | U8132 |
| Device Package | TO |
| Optional Wavelength |
850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc. |
| Wavelength Accuracy | ± 3 nm |
| Output Power | ≥1.0mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
| Output Power Stability within 15mins | ≤±0.01 dB |
| Output Power Stability within 8 hrs | ≤±0. 05 dB |
| SMSR | ＞ 35 dB (850/980nm),＞ 40 dB(1250nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
