Product Details:
|
| Model #: | U8131-1604 | Device Package: | Butterfly |
|---|---|---|---|
| Shape: | Desktop | Weight: | 2KG |
| Output Power Stability Within 8 Hrs: | ≤ ± 0.05 DB | Wavelength Accuracy: | ± 2 Nm |
| Output Power: | ≥20 MW | ||
| Highlight: | 1604nm Wavelength Laser Power Source,DFB Laser Power Source,Desktop DFB Laser Power Source |
||

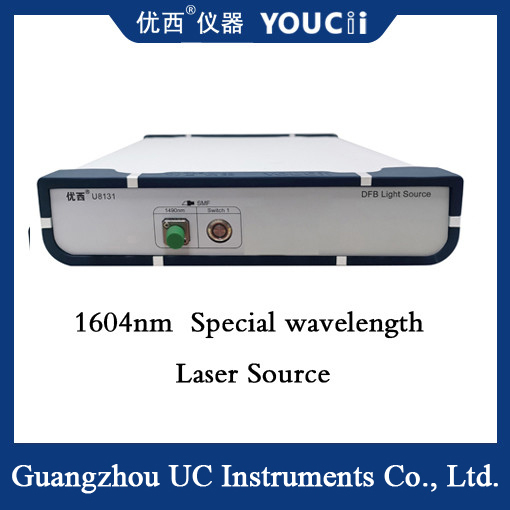

1604nm Special Wavelength Laser Source Laser Power Source DFB
1604nm special wavelength laser light source, wavelength optional; With 232 serial port PC software to achieve stable control current regulation. High stability and reliability.
DFB stabilized light source module series products, equipped with high-end narrow-width DFB semiconductor laser, high-precision temperature control drive circuit to ensure the stability of light source performance under a wide ambient temperature, can be equipped with 232 serial port, the upper computer software to adjust the temperature and current.
Features: Built-in DFB butterfly laser (FP optional), high stable continuous output (stability up to 0.05db 8 hours), output power up to 20mw, ultra-wide operating temperature (-30℃ to 80℃). It is suitable for the production and testing of optical passive devices, optical fiber sensing system, photoelectric system research and testing, scientific research experiments, etc.
| Model # | U8131-1604 |
| Device Package | Butterfly |
| Optional Wavelength | 1064 |
| Wavelength Accuracy | ± 2nm |
| Output Power | ≥20 mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 3MHz (0.03pm) |
|
Output Power Stability within 15mins |
≤ ± 0.02 dB |
|
Output Power Stability within 8 hrs |
≤ ± 0.05 dB |
| SMSR | 40 dB |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 2.0 kg |
Note:Single channel: U8131；ouble Channel:U8132；Four Channel:U8134
