10G Full Rate BERT Tester Two Channels For One Power And One Light 622M~15G

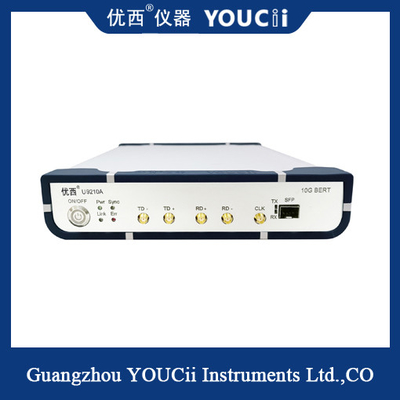

Large Image : 10G Full Rate BERT Tester Two Channels For One Power And One Light 622M~15G

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U9210A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	cartons
Delivery Time:	21 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	10pcs+per month

Contact Now

10G Full Rate BERT Tester Two Channels For One Power And One Light 622M~15G

Description

Data Rate:	0.622~11.7Gbps	Code Type:	PRBS7、PRBS9、PRBS15、PRBS23、PRBS31
Signal Output Amplitude (single-ended):	200~1000mV	Data Signal Input Sensitivity (single-ended):	0.1Vpp
Data Output Jitter (RMS):	1.5(10.3125G Down) Ps	Data Output Eye Graph Intersections:	50~54%
Highlight:	15G BERT Tester , Two Channels BERT Tester

10G Full Rate BERT Two Channels For One Power And One Light 622M~15G

Software function introduction

Data Rate:Setting the current data rate.
Data Pattern:Setting then current PRBS(Pattern).
Rx Mode: The equipment has two channels, optical channel and electrical channel, Select receive input is optical channel or electrical channel when receiving sensitivity test,SFP interface is optical channel,RX+ and RX- is electrical channel.
Data Invert:The electrical channel input signal polarity can be setting reversed,eg RX+ to TX- and RX- to Tx+.
Gating Time:Accumulation time setting for Accumulation BER measurement .
Start button:Start setting the parameters and testing the Instantanceous BER and Accumulation BER.
Refresh button: Manually refresh the accumulated BER.
USB Address box:Automatically enumerate all USB device addresses,select a USB address and press Connect button to connected the current device.
Instantaneous BER(bit error rate):refresh at 200ms intervals.

Accumulatio BER(bit error rate):accumulate the instantaneous bit error count and elapse time,Accumulatio BER = instantaneous bit error count/(elapse time*total bit count).

Measurement

-Lock ? Real Err Count ? Elapse Time ? Lock:Rx lol(sync) is lock or unlock

Real Err Count:Instantaneous bit error counter

Elapse Time:Accumulated time for Accumulatio BER measurement .

No.	parameter	minimum	typical	maximum	unit
1	Data rate	0.622	0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7	11.7	Gbps
2	Code type		PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
3	Ascending and descending time (20% to 80%)		18	23	ps
4	Pattern reversal		Supports signal reversal at the transmitting and receiving ends
5	Signal output amplitude (single-ended)	200	800	1000	mV
6	Data output jitter (RMS)		1.5(10.3125G down)		ps
7	Data input/output interface		Differential, AC coupling, 50 ohm impedance, SMA
8	Clock output	100	156.25	156.25	MHz
9	Data signal input sensitivity (single-ended)		0.1		Vpp
10	Data output eye graph intersections	50	52	54	%
11	Operating temperature	10	25	50	°C

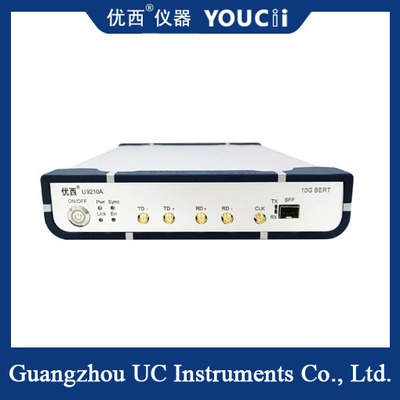

10G Full Rate BERT Tester Two Channels For One Power And One Light 622M~15G 1
