Product Details:
|
| Data Rate: | 0.622~11.7Gbps | Code Type: | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|---|---|---|---|
| Data Output Jitter (RMS): | 1.5(10.3125G) | Data Signal Input Sensitivity: | 50mVpp |
| Signal Differential Output Amplitude: | 200~1000mV | Data Output Eye Graph Crossing Point (difference): | 49~52% |
| Highlight: | 4 Channel BERT Tester,10G Full Rate BERT Tester |
||
4 Channel 10G Full Rate Error Meter(0.622 To 11.7 Gbps)Bert
Measurement of error detector electrical eye map:
2.5Gbps
6.25Gbps
10.3125Gbps

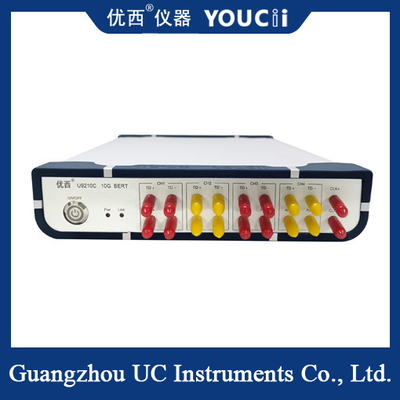

U9210C 4-channel 10G full rate error meter technical specification:
| No. | parameter | minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7 | 11.7 | Gbps |
| 2 |
Number of channels |
4 (4-channel electrical port, PG and ED supported) |
|||
| 3 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 4 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 5 |
Pattern reversal |
Supports signal reversal at the transmitting and receiving ends |
|||
| 6 |
Signal differential output amplitude |
200 | 600 | 1000 | mV |
| 7 |
Data output jitter (RMS) |
1.5(10.3125G) | ps | ||
| 8 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 9 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 10 |
Data signal input sensitivity |
50 | mVpp | ||
| 11 |
Data output eye graph crossing point (difference) |
49 | 50 | 52 | % |
| 12 |
USB HID response time |
10 | ms | ||
| 13 |
Operating temperature |
10 | 25 | 50 | °C |
| 14 |
Operating voltage (AC) |
180 | 220 | 250 | V |
