Product Details:
|
| Signal Output Amplitude (single-ended): | 200~1000mV | Data Output Jitter (RMS): | 1.5(10.3125G Down) Ps |
|---|---|---|---|
| Data Output Eye Graph Intersections: | 50~54% | Operating Temperature: | 10~50°C |
| Rise And Fall Time (20% To 80%): | 18~23 Ps | Data Signal Input Sensitivity (single-ended): | 0.1Vpp |
| Highlight: | SFP Optical Bit Error Instrument,12 Channel Optical Bit Error Instrument |
||

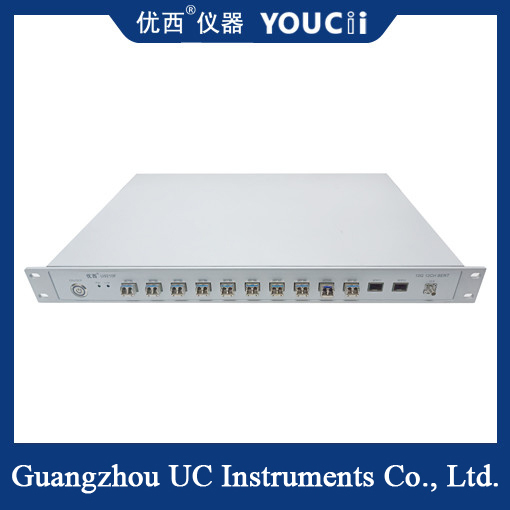

12 Channel SFP Optical Bit Error Instrument Continuous Error Detection
12 Channel SFP Optical Bit Error Instrument Performance characteristic:
1.U9210F 12channels Optical channel.
2.Support for continuous error detection and timing error detection.
3.Support Full Rate from 622M up to 11.7Gbps；
4.Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
5.Communication Mode USB HID or USB-COM.
12 Channel SFP Optical Bit Error Instrument technical parameter
|
parameter |
minimum |
typical |
maximum |
unit |
|
|
Data rate |
0.614 | 0.614,1.22,2.25,2.457,2.5,3.07,3.125,4.915,5.0,6.144,6.25,8.5,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.519,11.7 | 11.7 | Gbps | |
|
Number of channels |
12(12 channel optical port) | ||||
|
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | ||||
|
Rise and fall time (20% to 80%) |
18 | 23 | ps | ||
|
Pattern reversal |
Supports signal reversal at the transmitting and receiving ends |
||||
|
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV | |
|
Data output jitter (RMS) |
1.5(10.3125G down) | ps | |||
|
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
||||
|
Clock output |
100 | 156.25 | 156.25 | MHz | |
|
Data signal input sensitivity (single-ended) |
0.1 | Vpp | |||
|
Data output eye graph intersections |
50 | 52 | 54 | % | |
|
Operating temperature |
10 | 25 | 50 | °C | |
