Product Details:
|
| Number Of Channels: | 5 (4 Electrical Ports, 1 Optical Port, PG And ED Supported) | Code Type: | PRBS7、PRBS9、PRBS11、PRBS13、PRBS15、PRBS16、PRBS23、PRBS31，USER\ PRBS13Q、SSPRQ、JP03A、JP03B。 |
|---|---|---|---|
| Rise And Fall Time (20% To 80%): | 18~23 Ps | Data Input/output Interface: | Differential, AC Coupling, 50 Ohm Impedance, Female 2.92mm SMA |
| Highlight: | PRBS7 BERT Tester,4 Channel Parallel BERT Tester |
||

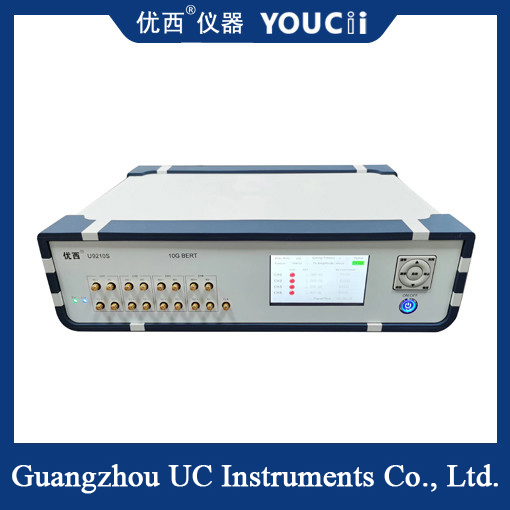

4 Channel Parallel Tape Display 10G Full Rate Error Meter BERT
Basic features of the U9210S:
1. Four-channel parallel PG and ED; Single ended clock output.
2. PG and ED support 37 rate points ranging from 0.6144 to 15.0 Gbps.
3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.
4, support continuous error detection and timing error monitoring.
5, with display screen, support panel button operation.
6. Communication mode: USB HID (drive free) or USB-com.
The screen interface is as follows (for reference only).
|
Instrument name |
U9210S | ||||
|
parameter |
minimum |
typical |
maximum |
unit |
|
|
Data rate |
0.6144 | 0.614,0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7,12,12.5,14.025,14.5,15Etc. | 15.0 | Gbps | |
|
Number of channels |
5 (4 electrical ports, 1 optical port, PG and ED supported) |
||||
|
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | ||||
|
Rise and fall time (20% to 80%) |
18 | 23 | ps | ||
|
Pattern reversal |
Supports signal reversal at the transmitting and receiving ends |
||||
|
Signal differential output amplitude |
200 | 600 | 1000 | mV | |
|
Data output jitter (RMS) |
1.5(10.3125G下) | ps | |||
|
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
||||
|
Clock output |
100 | 156.25 | 156.25 | MHz | |
|
Data signal input sensitivity |
50 | mVpp | |||
|
Data output eye graph crossing point (difference) |
49 | 50 | 54 | % | |
|
USB HID response time |
10 | ms | |||
|
Operating temperature |
10 | 25 | 50 | °C | |
|
Operating voltage (AC) |
180 | 220 | 250 | V | |
