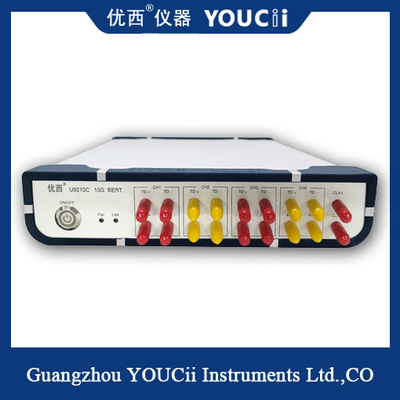

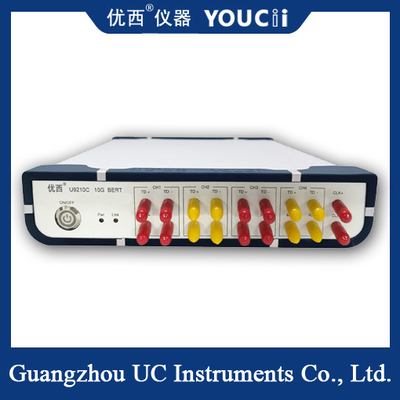

10G Full Rate Error Meter 4 Channel USB HID Or USB-COM

10G Full Rate Error Meter 4 Channel USB HID Or USB-COM

Basic performance features:

1. Four-channel parallel PG and ED; Single-ended clock output.

2, PG and ED support rates range from 0.622 to 11.7 Gbps (up to 15G, optional).

3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

4, Support continuous error detection and timing error monitoring.

5, communication mode: USB HID (no drive) or USB-COM.

Technical specification:

A Four-Channel Bit Error Rate Tester is an instrument used to assess the Bit Error Rate (BER) in a digital communication system. BER refers to the proportion of bits transmitted that have errors during digital communication.

A four-channel error meter usually has four independent channels, each used for analog or detecting the transmission and reception of digital signals. They are called "sending channels" and "receiving channels". The sending channel is responsible for generating and transmitting the digital signal, while the receiving channel is used to receive and analyze the received signal to determine the bit error rate.
