Product Details:
|
| Device Package: | Butterfly | Optional Wavelength: | 1305/1308 |
|---|---|---|---|
| Output Power: | ≥10.0mW | Output Power Stability Within 15mins: | ≤±0.005 DB |
| Output Power Stability Within 8 Hrs: | ≤±0. 05 DB | Dimensions: | 235 Mm W, 55 Mm H, 320 Mm D |
| Highlight: | Desktop Dimmable Optical Attenuator,Dynamic Dimmable Optical Attenuator |
||

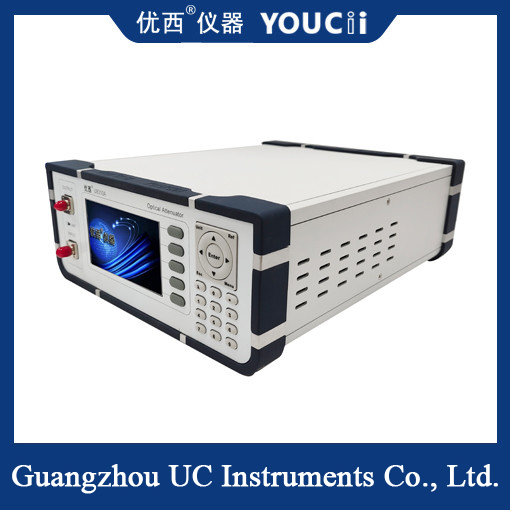

Desktop Dimmable Optical Attenuator Large Dynamic Attenuation
The U8130 multi-channel DFB light source can be used for the measurement and application of WDM CWDM devices, high precision WDM DWDM devices, optical waveguide grating array AWG devices, planar optical waveguide PLC devices, optical amplifier EDFA and other general optical fiber optics, especially for the mass production detection of couplers and planar optical waveguide PLC components.
In addition, the multi-channel DFB light source can be used for a variety of fiber optic measurements and applications, such as WDM CWDM devices, high-precision WDM DWDM devices, optical waveguide grating array AWG devices, planar optical waveguide PLC devices, optical amplifiers EDFA, etc. According to customer needs, this light source can also be customized for specific wavelength combinations of light sources, such as 850, 980, 1270, 1290, 1610, 1625nm and so on.
| Model # | U8130 |
| Device Package | Butterfly |
| Optional Wavelength | 1305/1308 |
| Wavelength Accuracy | ± 2 nm |
| Output Power | ≥10.0mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜ 0.5 nm |
|
Output Power Stability within 15mins |
≤±0.005 dB |
|
Output Power Stability within 8 hrs |
≤±0. 05 dB |
| SMSR | ＞ 45 dB(1270nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
