Product Details:
|
| Data Rate: | 0.622、1.25、2.5、5.0、9.953、10.00、10.3125、10.52、11.09、11.32、11.7 | Code Pattern: | PRBS7、PRBS9、PRBS15、PRBS23、PRBS31 |
|---|---|---|---|
| Pattern Reversal: | Supports Signal Inversion At The Transmitting And Receiving Ends | Clock Output: | 156.25 MHz |
| Data Signal Input Sensitivity: | 50m Vpp | Signal Differential Output Amplitude: | 200~1000 MV |
| Highlight: | 10 Gbit/S Bit Error Meter,4 Channel Bit Error Meter |
||

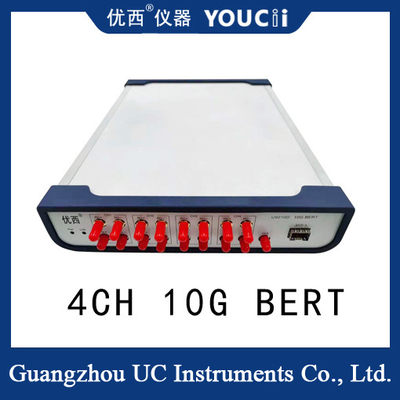

SFP Optical Port Channel 4 Electrical Port 1 Optical Port 10 Gbit/S Bit Error Meter
Basic performance characteristics:
1, our-channel parallel PG and ED; Single-ended clock output.
2, One SFP optical port channel.
3, PG and ED support rates ranging from 0.622 to 11.7 Gbps.
4, Supported code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.
5, Supports continuous bit error detection and periodic bit error monitoring.
6, Communication mode: USB HID (drive free) or USB-COM.
Specification
| No. | Argument | min | Model | Max | unit |
| 1 | Data rate | 0.622 | 0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7 | 11.7 | Gbps |
| 2 | Number of channels | 5(4Electrical port, 1 optical port, PG and ED supported) | |||
| 3 | Code pattern | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 4 | Rise and fall time (20% to 80%) | 18 | 23 | ps | |
| 5 | Pattern reversal | Supports signal inversion at the transmitting and receiving ends | |||
| 6 | Signal differential output amplitude | 200 | 600 | 1000 | mV |
| 7 | Data output jitter (RMS) | 1.5(10.3125G) | ps | ||
| 8 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, SMA | |||
| 9 | Clock output | 100 | 156.25 | 156.25 | MHz |
| 10 | Data signal input sensitivity | 50 | mVpp | ||
| 11 | Data output eye crosspoint | 49 | 50 | 54 | % |
| 12 | USB HID response time | 10 | ms | ||
| 13 | Operating temperature | 10 | 25 | 50 | °C |
| 14 | Operating voltage (AC) | 180 | 220 | 250 | V |
The full rate error meter is an instrument used to measure the bit error rate in digital communication system. It can generate data streams of various rates and detect the number of error codes at the receiving end, thus evaluating the performance of the communication system.
Full-rate error detectors usually have multiple rate options and can simulate data transmission at different rates. It can produce a random stream of bits or a predefined test pattern to simulate data transmission in a real communication environment. At the receiving end, the error meter will detect and count the number of error codes, and display them in a certain format so that users can analyze the performance of the communication system.
