The Full-Rate Error Detector Supports Continuous Error Detection

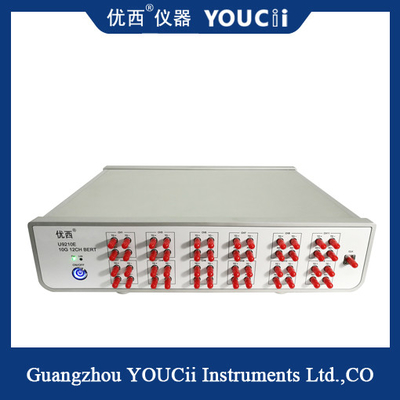

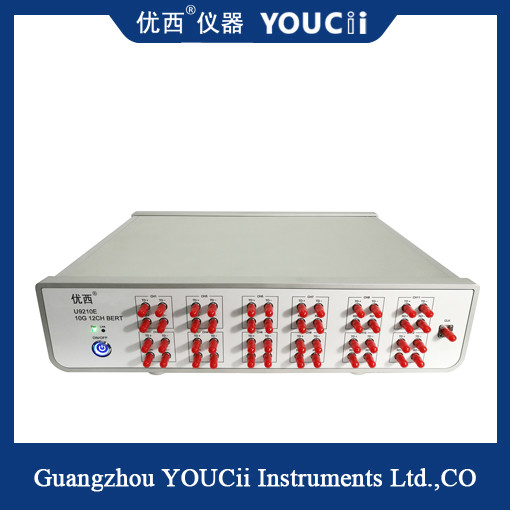

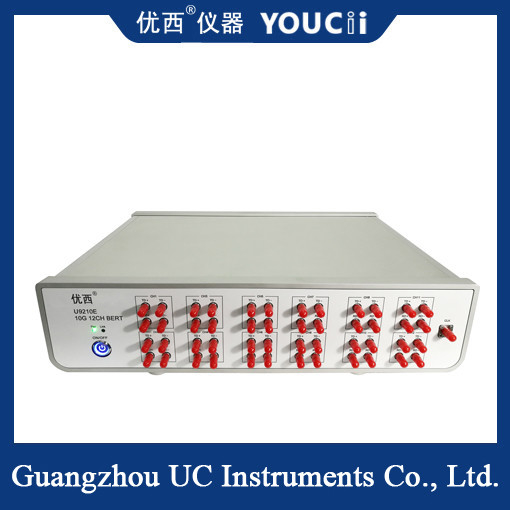

Large Image : The Full-Rate Error Detector Supports Continuous Error Detection

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U9210E

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	7 pcs+per month

Contact Now

The Full-Rate Error Detector Supports Continuous Error Detection

Description

Data Rate(Gbps):	0.622、1.25、2.125、2.488、2.5、3.07、3.125、4.25、5.0、6.144、6.25、7.5、8.5 、9.953、10.00、10.3125、10.52、10.709、11.09、11.32、11.7、14.025、15	Rise And Fall Time (20% To 80%):	18
Data Input/output Interface:	Differential, AC Coupling, 50 Ohm Impedance, SMA	Clock Output(MHz):	100~156.25
Operating Temperature(°C):	10~50	Data Signal Input Sensitivity (Vpp):	0.1
Highlight:	Continuous Detection Error Detector , Continuous Detection Full-Rate Error Detector

The Full-Rate Error Detector Supports Continuous Error Detection

Performance character

12 electric channels, all channels synchronous input and output, Error Code testing can be independent.

Support for continuous error detection and timing error detection.

Support Full Rate from 622M up to 15Gbps；

Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31

One channels low jitter clock output.

Communication Mode USB HID.

The 12-channel full rate error meter has multiple channels and can detect the error of multiple data streams simultaneously. Such devices typically support multiple rates of data transmission, including low and high speed data transmission. In addition, it also has continuous error detection and timing error monitoring functions, which can set the detection time and detection interval according to needs.

Specification

No.	Argument	Min	Model	Max	unit
1	Data rate	0.622	0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15	15	Gbps
2	Code pattern		PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
3	Rise and fall time (20% to 80%)		18	23	ps
4	Pattern reversal		Supports signal inversion at the receiving end
5	Signal output amplitude (single-ended)	200	800	1000	mV
6	Data output jitter (RMS)		1.5(10.3125G)		ps
7	Data input/output interface		Differential, AC coupling, 50 ohm impedance, SMA
8	Clock output	100	156.25	156.25	MHz
9	Data signal input sensitivity (single-ended)		0.1		Vpp
10	Data output eye map intersections	50	52	54	%
11	Operating temperature	10	25	50	°C

The Full-Rate Error Detector Supports Continuous Error Detection 0
