Product Details:
|
| Device Package: | TO/Butterfly | Connector Type: | FC/APC ( Other Adaptor Can Be Customized) |
|---|---|---|---|
| Operation Temp: | 0～ +40 ℃ | Storage Temp: | -30～+80 ℃ |
| Bandwidth @20 DB: | ＜ 0.5 Nm | Bandwidth @3 DB: | ＜ 0.1 Nm |
| Highlight: | Adjustable Point Light Source,Four-Channel Point Light Source,Cost-Effective Point Light Source |
||

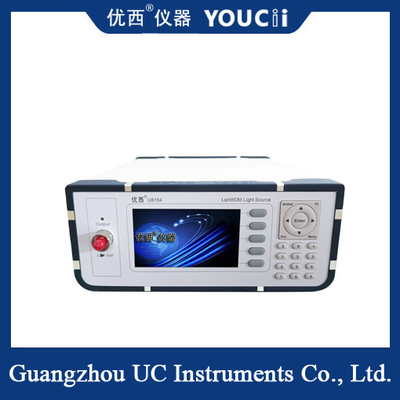

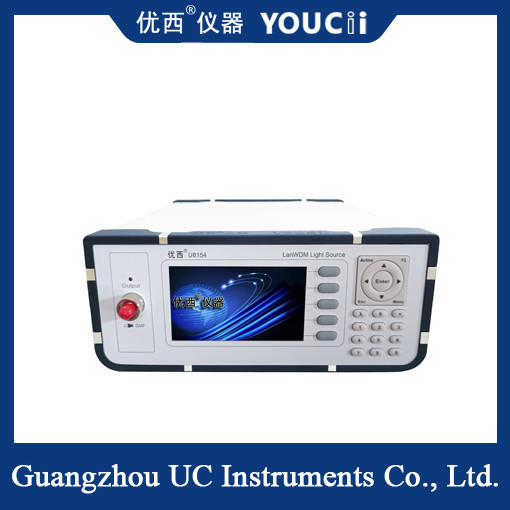

Four-Channel Adjustable Point Light Source Cost-Effective
The U8154 Lan WDM light source is a specific model or logo wavelength Division multiplexing (WDM) light source device designed for local area network (Lan) environments. In a local area network environment, this light source device plays a key role in ensuring efficient and stable data transmission.
WDM technology significantly increases the transmission capacity of the fiber by simultaneously transmitting multiple optical signals of different wavelengths in a single fiber. The U8154 Lan WDM light source can generate and transmit these specific wavelengths of light signals, so that data can be quickly and accurately transmitted in the local area network.
Specification
| Model # | 8154-L1TP/8151-L1TP | 8154-L1BP/V/ 8151-L1BP/V | 8154-L2BP/V/8151-L2BP/V | |
| Device Package | TO | Butterfly | ||
| Wavelength | L1(1271/1291/1311/1331) | L2(1295.56/1300.05/...) | ||
| Wavelength Accuracy | ± 1.0 nm | ± 0.5 nm | ||
| Output Power | ≥ 1.0mW | ≥ 8.0mW | ||
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) | |||
| Bandwidth @3 dB | ＜ 0.1 nm | |||
| Bandwidth @20 dB | ＜ 0.5 nm | |||
| Output Power Stability (15min) | ≤±0.01 dB | |||
| Output Power Stability (8hr) | ≤±0. 05 dB | ≤±0. 03 dB | ||
| SMSR | ＞ 40 dB | |||
| Operation Temp | 0～ +40 ℃ | |||
| Storage Temp | -30～+80 ℃ | |||
| Dimensions | 1U: 235mm W, 55mm H, 320mm D | 2U: 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 3.0 kg | |||
Note: A 1U chassis with four-way equal power output is generally used, and a 2U chassis with four-in-one and adjustable power output is generally used.
