25G Four-Channel BERT Used For Optical Module Development And Production

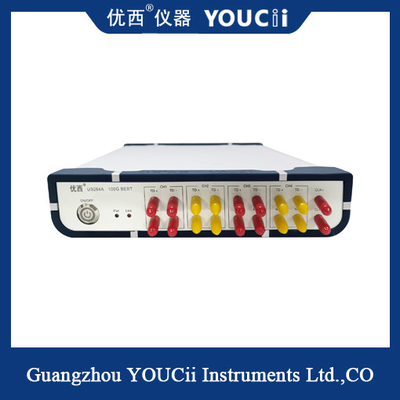

Large Image : 25G Four-Channel BERT Used For Optical Module Development And Production

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U9264B

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	7 pcs+per month

Contact Now

25G Four-Channel BERT Used For Optical Module Development And Production

Description

Power Dissipation:

20W

Operating Temperature Range:

0~55°C

Overall Dimension:

235 X 85 X 320

Connecting Port:

SFP28，SFP+

Highlight:

25G Four-Channel BERT

Optical Module Development 25G Four-Channel BERT

25G Four-Channel BERT

25G Four-Channel BERT Used For Optical Module Development And Production

The U9264B 25G four-channel error meter is a high-performance test device with several important features and functions. It supports the testing of high-speed data transfer rates and can handle the needs of multiple rates, including but not limited to 9.953Gbps to 14.025Gbps and multiple rates between 25 and 28.05Gbps. This enables it to play an excellent role in the development and production testing of optical modules and communication systems.
In addition, a bit error meter is a device used to test the quality of signal transmission in a communication system, which can help engineers and technicians identify and eliminate faults and errors in the communication system.

Specification

Argument	Min	Model	Max	Unit	Remark
Universal parameter
Supply voltage	100	220	240	V	Alternating current, 50-60HZ
Power dissipation	20			W
Operating temperature range	0		55	℃
Overall dimension	235 x 85 x 320			mm
Code error detector (ED)
Input level range	100	—	1200	mVppd	Differential input, AC coupling
Input rate range	9.953	—	28.05	Gbps
Connecting port	SFP28,SFP+				Difference, front panel
Supported code types	PRBS 2n-1, n=7, 9, 10, 11, 15,23, 31, Up to 40 bits/Ch, user defined				Rate 9.953 to 14.025Gbps
Supported code types	PRBS 2n-1, n=9, 15, 31				Speed 25~28.05Gbps

25G Four-Channel BERT Used For Optical Module Development And Production 0
