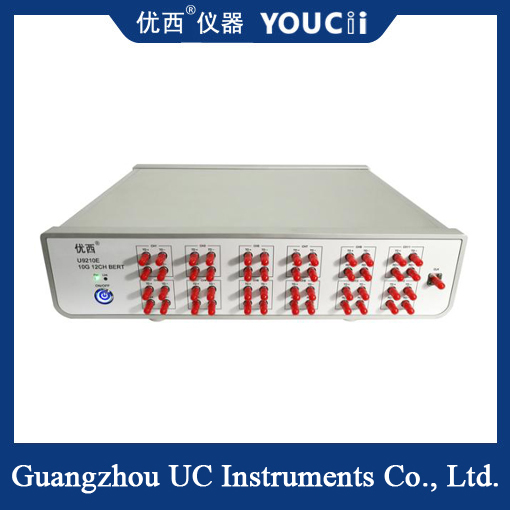

BERT 12 Electric Channels All Channels Synchronous Input And Output
The U9210E 12-channel full rate error tester is a powerful, excellent performance test equipment, mainly used for communication system error rate test. It has 12 electrical channels, all of which can achieve synchronous input and output, and supports independent error detection, so that the performance and quality of the communication system can be comprehensively and accurately evaluated.
This error meter supports full rate testing from 622M to 15Gbps, which means that it can meet the test needs at different rates and has a very wide range of applications. In addition, it supports multiple pseudo-random code types (PRBS), such as PRBS7, PRBS9, PRBS15, PRBS23, and PRBS31, to simulate different types of signals, providing a more comprehensive and realistic test environment.
Specification
| No. | Argument | Min | Model | Max | unit |
| 1 | Data rate | 0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 | Code pattern | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 | Rise and fall time (20% to 80%) | 18 | 23 | ps | |
| 4 | Pattern reversal | Supports signal inversion at the receiving end | |||
| 5 | Signal output amplitude (single-ended) | 200 | 800 | 1000 | mV |
| 6 | Data output jitter (RMS) | 1.5(10.3125G) | ps | ||
| 7 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, SMA | |||
| 8 | Clock output | 100 | 156.25 | 156.25 | MHz |
| 9 | Data signal input sensitivity (single-ended) | 0.1 | Vpp | ||
| 10 | Data output eye map intersections | 50 | 52 | 54 | % |
| 11 | Operating temperature | 10 | 25 | 50 | °C |
