Product Details:
|
| Data Rate: | 0.614~11.7 Gbps | Signal Output Amplitude (single-ended): | 200~800 MV |
|---|---|---|---|
| Clock Output: | 100~156.25 MHz | Data Output Jitter (RMS): | 1.5（10.3125G） Ps |
| Highlight: | Rate Error Meter,12 Channel Full Rate Error Meter |
||
12 Channel 10G Full Rate Error Meter Supports Continuous Bit Error Detection

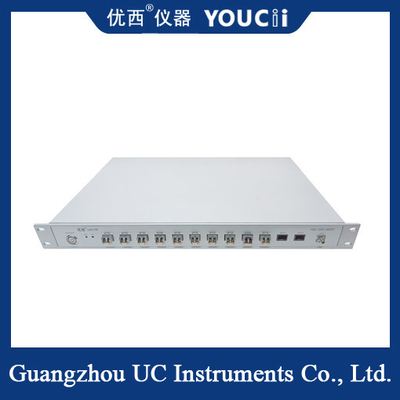

The U9210F 12-channel 10G full rate error meter is a powerful test device that can support continuous error detection and timing error monitoring, covering the 10G full rate range (622M to 11.7Gbps 20 frequency points). At the same time, it supports a variety of code types, including PRBS7, PRBS9, PRBS15, PRBS23 and PRBS31, to meet different test needs. In addition, the communication mode of the U9210F error meter is USB HID or USB-COM, which makes data transmission and configuration more convenient.
In high-speed data transmission systems, such as fiber optic communications, data centers, cloud computing and other fields, the U9210F 12-channel 10G full rate error meter plays a crucial role. Data transfer rates in these areas are extremely high, so high-speed test equipment is needed to evaluate the performance and stability of the system. The U9210F error detector helps users identify potential problems and fix them, ensuring the stability and reliability of data transmission.
Specification
| No. | Argument | Min | Model | Max | unit |
| 1 | Data rate | 0.614 | 0.614,1.22,2.25,2.457,2.5,3.07,3.125,4.915,5.0,6.144,6.25,8.5,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.519,11.7 | 11.7 | Gbps |
| 2 | Number of channels | 12 (12 channel port) | |||
| 3 | Code pattern | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 4 | Rise and fall time (20% to 80%) | 18 | 23 | ps | |
| 5 | Pattern reversal | Supports signal inversion at the transmitting and receiving ends | |||
| 6 | Signal output amplitude (single-ended) | 200 | 800 | 1000 | mV |
| 7 | Data output jitter (RMS) | 1.5(10.3125G) | ps | ||
| 8 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, SMA | |||
| 9 | Clock output | 100 | 156.25 | 156.25 | MHz |
| 10 | Data signal input sensitivity (single-ended) | 0.1 | Vpp | ||
| 11 | Data output eye map intersections | 50 | 52 | 54 | % |
| 12 | Operating temperature | 10 | 25 | 50 | °C |
