4 Channel With Display 10G Full Rate Error Meter Parallel PG And ED

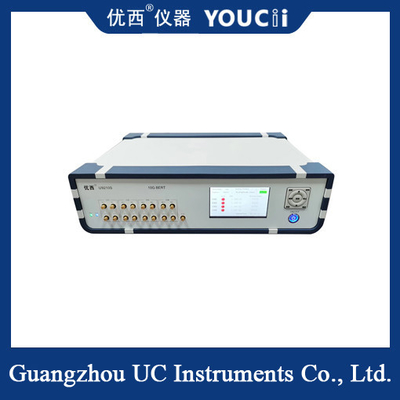

The U9210S is a 10G full rate error meter with four channels and display. Key features of this device include:
Four-channel parallel PG and ED, single-end clock output, so that it can simultaneously process the data of multiple channels, greatly improving the work efficiency.
PG and ED support rate ranges from 0.6144 to 15.0Gbps, a total of 37 rate points, which makes it able to adapt to different rates of data transmission needs.
Support for multiple code types, including PRBS7, PRBS9, PRBS15, PRBS23, and PRBS31, increases the flexibility and adaptability of the device.
Continuous bit error detection and periodic bit error monitoring are supported, which helps to discover and solve problems in a timely manner and ensures the accuracy and stability of data transmission.
With a display screen, support panel button operation, so that users can intuitively view the status of the device and operate.
The communication mode supports USB HID (drive-free) or USB-COM to facilitate user connection and data transmission with the device.
Specification
| No. | Argument | Min | Model | Max | unit |
| 1 | Data rate | 0.6144 | 0.614,0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7,12,12.5,14.025,14.5,15 etc. | 15.0 | Gbps |
| 2 | Number of channels | 5 (4 electrical ports, 1 optical port, PG and ED support) | |||
| 3 | Code pattern | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 4 | Rise and fall time (20% to 80%) | 18 | 23 | ps | |
| 5 | Pattern reversal | Supports signal inversion at the transmitting and receiving ends | |||
| 6 | Signal differential output amplitude | 200 | 600 | 1000 | mV |
| 7 | Data output jitter (RMS) | 1.5(10.3125G) | ps | ||
| 8 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, SMA | |||
| 9 | Clock output | 100 | 156.25 | 156.25 | MHz |
| 10 | Data signal input sensitivity | 50 | mVpp | ||
| 11 | Data output eye crosspoint | 49 | 50 | 54 | % |
| 12 | USB HID response time | 10 | ms | ||
| 13 | Operating temperature | 10 | 25 | 50 | °C |
| 14 | Operating voltage (AC) | 180 | 220 | 250 | V |
