The 4-channel Display 10G Full Rate Error Meter Supports Panel Key Operation

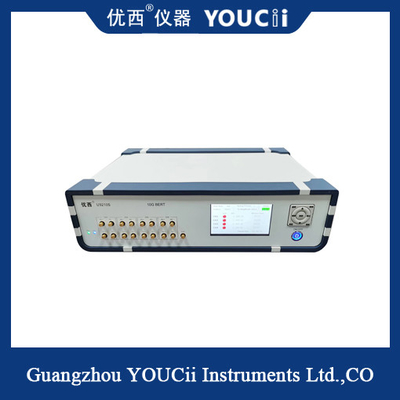

Large Image : The 4-channel Display 10G Full Rate Error Meter Supports Panel Key Operation

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U9210S

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	7 pcs+per month

Contact Now

The 4-channel Display 10G Full Rate Error Meter Supports Panel Key Operation

Description

Number Of Channels:

5 (4 Electrical Ports, 1 Optical Port, PG And ED Support)

Signal Differential Output Amplitude:

200~1000 MV

Data Signal Input Sensitivity:

50m MVpp

USB HID Response Time:

10 Ms

Highlight:

panel key operation rate error meter

10G Full Rate Error Meter

The 4-channel display 10G full rate error meter supports panel key operation

The U9210S four-channel 10G full rate error meter is a powerful test device with several notable features.

First, it supports four-channel parallel PG and ED, as well as single-ended clock output, which makes it able to meet the needs of multi-channel parallel testing and improve test efficiency.

Second, the U9210S supports 37 rate points ranging from 0.6144 to 15.0Gbps, which means it can cover a wide range of rates to meet the needs of various test scenarios.

In addition, it supports a variety of code types, such as PRBS7, PRBS9, PRBS15, PRBS23 and PRBS31, which gives users more choice and flexibility.

In terms of error detection, the U9210S supports continuous error detection and timed error monitoring, which helps to accurately find problems in signal transmission and improve the accuracy of the test.

Specification

No.	Argument	Min	Model	Max	unit
1	Data rate	0.6144	0.614,0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7,12,12.5,14.025,14.5,15 etc.	15.0	Gbps
2	Number of channels		5 (4 electrical ports, 1 optical port, PG and ED support)
3	Code pattern		PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4	Rise and fall time (20% to 80%)		18	23	ps
5	Pattern reversal		Supports signal inversion at the transmitting and receiving ends
6	Signal differential output amplitude	200	600	1000	mV
7	Data output jitter (RMS)		1.5(10.3125G)		ps
8	Data input/output interface		Differential, AC coupling, 50 ohm impedance, SMA
9	Clock output	100	156.25	156.25	MHz
10	Data signal input sensitivity		50		mVpp
11	Data output eye crosspoint	49	50	54	%
12	USB HID response time		10		ms
13	Operating temperature	10	25	50	°C
14	Operating voltage (AC)	180	220	250	V

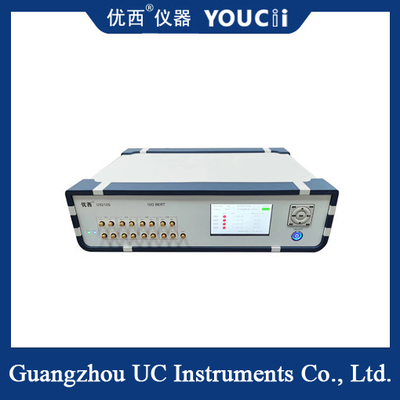

The 4-channel Display 10G Full Rate Error Meter Supports Panel Key Operation 0
