Product Details:
|
| Dimension: | 1U Rack Chassis | Material: | Metal |
|---|---|---|---|
| Number Of Channels: | 18 | Laser Type: | TO |
| Optional Wavelength: | 850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 Nm Etc. | Wavelength Accuracy: | ± 3 Nm |
| Output Power: | ≥1.0mW | ||
| Highlight: | Simultaneously Point Light Source,Multiple Wavelengths Point Light Source,18-Channel Point Light Source |
||

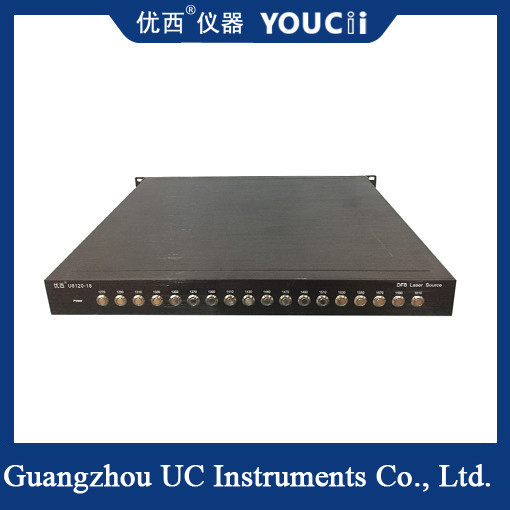

18-Channel Point Light Source Can Work In Multiple Wavelengths Simultaneously
18 channel point light source is a special light source equipment, its characteristics are mainly reflected in the following aspects:
Number of channels: The device has 18 channels, which means it can provide 18 separate light source outputs at the same time.
Application: Multi-channel point light source equipment is widely used in optical communication, optical testing, scientific research experiments and other fields. For example, in optical communications, it can be used for CWDM (coarse wavelength division multiplexing) testing to provide a light source for multiple wavelength channels.
Performance characteristics:
Stability: Thanks to the use of high-precision automatic power control and automatic power monitoring control, 18-channel point light sources usually have good short - and long-term stability.
Regulatory: Each wavelength channel can be switched on and off individually, allowing users to select the channel that needs to be activated according to actual needs.
Technical specification
| Model # | U8120 | |
| Device Package | TO | |
| Optional Wavelength |
850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc. |
|
| Wavelength Accuracy | ± 3 nm | |
| Output Power | ≥1.0mW | |
| Connector Type | FC/APC (Other Adaptor Can Be Customized) | |
| Bandwidth@3 dB | ＜ 0.1 nm | |
| Bandwidth@20 dB | ＜ 0.5 nm | |
| Output Power Stability within 15mins | ≤±0.01 dB | |
| Output Power Stability within 8 hrs | ≤±0. 05 dB | |
| SMSR | ＞ 35 dB (850/980nm),＞ 40 dB(1270nm etc.) | |
| Operation Temperature | 0～ +40 ℃ | |
| Storage Temperature | -30～+80 ℃ | |
| Dimensions | 235 mm W, 55 mm H, 320 mm D | |
| Weight | 3.0 kg | |
In summary, the 18-channel point light source is a high-performance, versatile light source device for applications where multiple independent light output needs to be provided simultaneously. Users can customize the wavelength and device type according to their own needs.
