Product Details:
|
| Signal Output Amplitude: | 200mV | Material: | Metal |
|---|---|---|---|
| Signal Encoding Mode: | NRZ/PAM4 | Dimensions: | 17.3 X 8.7 X 5.3 Inches |
| Connectivity: | USB, LAN, GPIB | Data Rate: | 6.144、10.3125、20、25、25.78125、26.5625、28.05 |
| Clock Output: | 6.64 | ||
| Highlight: | Optical Transceiver Module PM4 BERT,400G PM4 BERT,High Speed PM4 BERT |
||

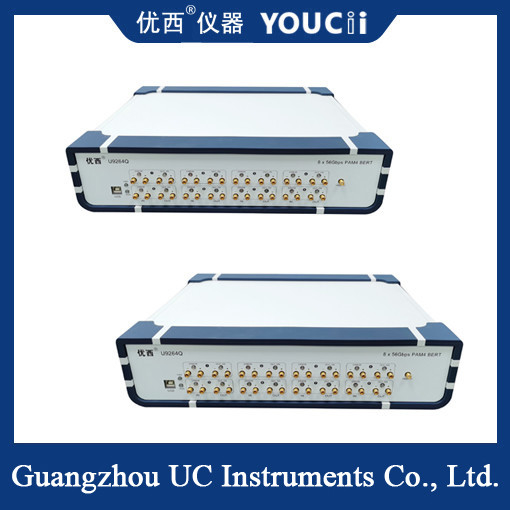

400G PM4 BERT High Speed Optical Transceiver Module Test Equipment
Product characteristics
Code type switch:
Ordinary error detectors can only produce a single code pattern, while the 400G PAM4 error detector can switch NRZ (non-returnto-zero code) and PAM4 (four-level pulse amplitude modulation) code patterns without any peripheral accessories.
PAM4 signal is 4 level pulse amplitude modulation, can display more bit logic information than traditional digital signals, suitable for high-speed optical communication systems.
High-speed test capability:
Support PAM4 rate from 24.33GBaud to 30GBaud, meet the test requirements of 400G high-speed optical transceiver module.
It also supports advanced functions such as Gray coding and FEC (forward error correction) to ensure comprehensiveness and accuracy of the test.
Versatility:
Both internal and external trigger, output amplitude adjustment, PAM4 transmission signal level proportional adjustment and other functions, for high-speed optical transceiver module automatic production test provides an effective guarantee.
The bit error rate can be read by the internal bit error count, or the received data can be looped back to the error detection module of the error analyzer for bit error rate determination.
Standardized testing:
Meet the test requirements of IEEE 802.3bs 400G and OIF-CEI-56G/28G and other international standards to ensure the compatibility and reliability of test results.
Technical parameter
| No. | Argument | MIN | Model | MAX | Unit |
| 1 | Signal coding mode | NRZ/PAM4 | |||
| 2 | Data rate | 6.144 | 6.144,10.3125,20,25,25.78125,26.5625,28.05 | 28.05 | Gbps |
| 3 | Code pattern | PRBS7,PRBS9,PRBS11,PRBS13,PRBS15,PRBS16,PRBS23,PRBS31,USER PRBS13Q,SSPRQ,JP03A,JP03B. | |||
| 4 | Rise-fall time(20% to 80%) | 14 | 35 | pS | |
| 5 | Pattern reversal | The signal at the receiving end is automatically reversed | |||
| 6 | Signal output amplitude (single-ended) | 200 | 800 | 1000 | mV |
| 7 | 25G Data Output jitter (RMS) | 500 | 700 | fs | |
| 8 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, female 2.92mm SMA | |||
| 9 | Clock output | 0.2 | 6.64 | 13.28 | GHz |
| 10 | Data signal input sensitivity (single-ended) | 50 | mVpp | ||
| 11 | Data output eye map intersection NRZ | 49 | 50 | 52 | % |
| 12 | PAM4 Eye height (per eye height) | 80 | 110 | 200 | mV |
| 13 | Linearity of PAM eye map | 0.95 | 0.98 | 1 | |
| 14 | Operating temperature | 10 | 25 | 50 | °C |
Application scenario
Optoelectronic component testing: Suitable for 200G and 400G high-speed optical transceiver modules and optoelectronic component testing.
Laboratory and scientific research: Used in optical communication laboratories and scientific research institutions to study and verify the performance and reliability of high-speed optical communication technology.
Optical module manufacturers: Domestic optical module manufacturers rely on manual operations during optical module commissioning.
However, manual commissioning is inefficient and costly. Therefore, some manufacturers consider developing automated test software to realize automatic optical module commissioning, calibration, and report export.
The 400G PAM4 error meter meets this requirement with Programmable Instrument Standard Command (SCPI) instruction communication.
