Product Details:
|
| Settling Time: | 100ms | Material: | Metal |
|---|---|---|---|
| Calibration Cycle: | 2 Years | Averaging Time Of Monitor PM: | 2 Ms ~ 1 S |
| Attenuation Transition Speed: | 0.1 ~ 50 DB/s | Return Loss: | > 45 DB |
| Weight: | 3.0kg | ||
| Highlight: | Optical Power Meter Optical Attenuator,Single-Channel Optical Attenuator,Optically Controlled Optical Attenuator |
||

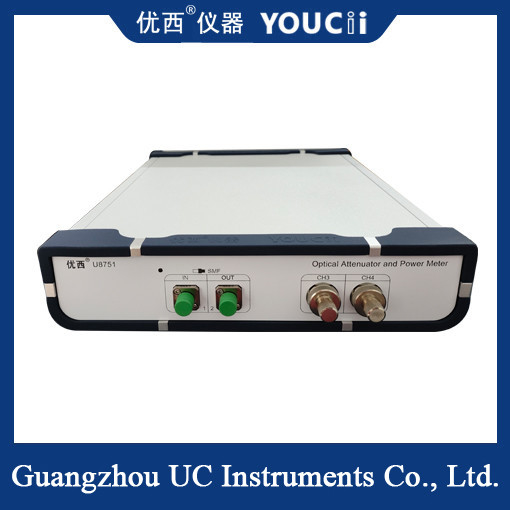

Single-Channel Optically Controlled Optical Attenuator And Optical Power Meter In One
Single-channel optical-controlled optical attenuator and optical power meter two-in-one device is a test instrument that integrates optical attenuator and optical power meter in one. This device has a wide range of applications in optical communication, optical fiber testing, optical research and development, and can provide accurate and fast optical signal testing and control.
Functional characteristics
Light attenuation function:
The device has a single-channel optical attenuation function, which can realize continuous or hierarchical adjustment of optical signal intensity.
Through the built-in precision stepper motor or attenuation element, the user can precisely control the attenuation amount of the optical signal to meet different test needs.
Optical power meter functions:
The device also integrates the function of an optical power meter, which can directly measure the absolute power or relative loss of the optical signal.
The optical power meter has the characteristics of high sensitivity, high precision and wide measuring range, which can accurately reflect the intensity change of optical signal.
Two-in-one design:
The optical attenuator and optical power meter are integrated into one, which greatly saves equipment space and cost.
At the same time, this design also improves the convenience and efficiency of testing, and users can complete the attenuation and measurement of optical signals on the same device.
Specification
| Model # | U8751 / U8752 | |
| Operation Mode | Attenuation Setting mode | Power Setting mode |
| Range | 0~40 dB | +5 ~ -70dBm |
| Resolution | 0.01 dB | 0.001 dB |
| Repeatability |
±0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) |
±0.02 dB |
| Calibration Wavelength | 1270 / 1310 / 1490 /1550 /1610 nm | |
| Fiber Type | 9/125 um single mode | SMF and MMF |
| Connector Type | FC/UPC Connector | FC/SC/LC Option |
| Insertion Loss | ≤1.5 dB | |
| Accuracy (With Optical Power Control) |
± 0.02 dB (0 ~ 20 dB) ±0.05 dB (20~40 dB) |
±0.02 dB |
| Averaging time of monitor PM | 2 ms ~ 1 s | |
| Settling Time | 100ms | |
| Attenuation Transition Speed | 0.1 ~ 50 dB/s | |
| Return Loss | > 45 dB | |
| Maximum safe input power | +20dBm | +5dBm |
| Recalibration Period | 2 years | |
| Operation Temperature | 0～ +40℃ | |
| Storage Temperature | -30～+80℃ | |
| Power | 100~240 V | |
| Dimensions | 235mm W, 55mm H, 320 mm D | |
| Weight | 3.0 kg | |
Application field
Optical fiber communication system test: In the construction process of optical fiber communication system, the equipment can be used to test the attenuation characteristics of different optical fiber transmission paths, the performance of optical end equipment and the transmission quality of optical fiber links.
Optical fiber device development: In the development process of optical fiber devices, the device can be used to evaluate the attenuation performance of the device, transmission efficiency and other key indicators, to provide strong support for the optimization and improvement of the device.
Optical communication teaching experiment: In the optical communication teaching experiment, the device can provide students with a platform to deeply understand the principle and technology of optical communication, and help students master the attenuation mechanism of optical signal, regulation principle and the composition and working mode of optical communication system.
