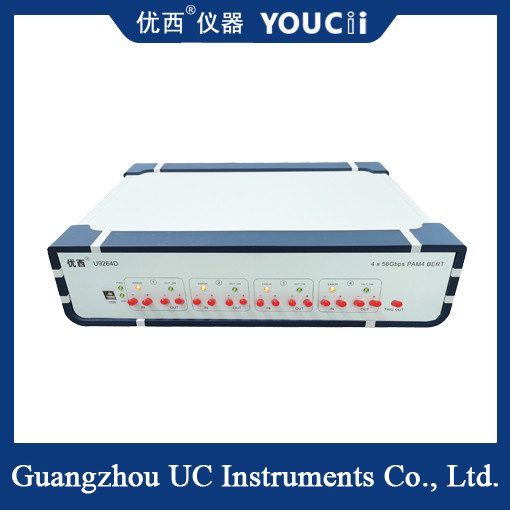

200G Four-Channel PAM4/NRZ Error Analyzer BERT10.3125/26.5625G

200G Four-Channel PAM4/NRZ Error Analyzer BERT10.3125/26.5625G

The 200G PAM4 error meter is a high performance test equipment, which is mainly used to detect and analyze the error of digital signals using PAM4 (four-level pulse amplitude modulation) technology at 200G rate.

Main function
Code switching: The 200G PAM4 error meter can arbitrarily switch NRZ (non-return-to-zero code) and PAM4 code types without any peripheral accessories to meet a variety of test needs.

Trigger and regulation: Internal and external trigger functions, as well as output amplitude adjustment and PAM4 transmitted signal level proportional adjustment, provide greater flexibility and accuracy for testing.

Error detection and analysis: It can send digital signals, monitor the sent signals, record the number and type of error codes, provide detailed error statistics and analysis, and help users quickly locate the problem.

Application scenario
High-speed optical transceiver module testing: 200G PAM4 code error tester is an important tool for automated production testing of high-speed optical transceiver modules, which can ensure that the performance of the module meets the standard.

Communication system testing: During the development, production and maintenance of the communication system, the 200G PAM4 error meter can be used to detect and analyze the error situation in the system to improve the stability and reliability of the communication system.

Research and teaching: In research and teaching in the field of communication, the 200G PAM4 error meter can be used in experiments and research to help students and researchers deeply understand communication principles and technologies.
