Product Details:
|
| Type: | SFP28 | Storage Temperature: | -40°C To 85°C |
|---|---|---|---|
| Operating Temperature: | 0°C To 70°C | Data Rate: | 1.25-56G |
| Adjustable Output Supply Voltage: | 2.8-4V | Monitoring Current: | 0-1000mA |
| Monitoring Current Accuracy: | 0.1mA | ||
| Highlight: | Stable Environment SFP28 Evaluation Board,25G SFP28 Evaluation Board,6-Channel SFP28 Evaluation Board |
||

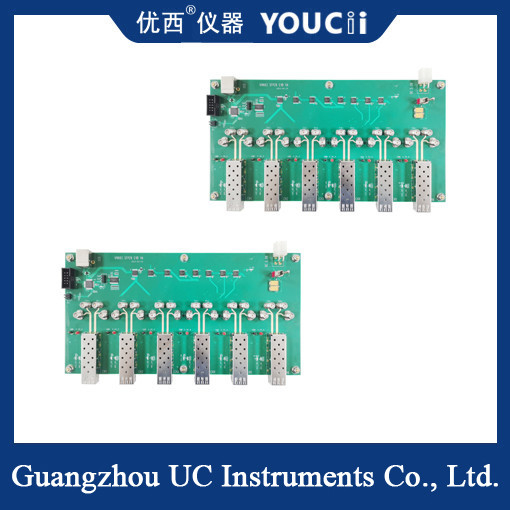

The 6-Channel 25G Rate SFP28 Evaluation Board Provides A Stable Environment
The 6-channel 25G rate SFP28 evaluation board is a high-performance hardware evaluation platform, mainly used to test and verify the performance and compatibility of the 25G rate SFP28 optical module. The evaluation board is designed with six SFP28 interfaces, which can be connected to six SFP28 optical modules with 25G rate at the same time for parallel data transmission and testing.
Functional characteristics
Multi-channel parallel processing: The evaluation board supports 6 channels in parallel processing, and each channel can work independently without interfering with each other, thus improving the efficiency and stability of data transmission.
High-speed data transmission: Each channel supports 25Gbps high-speed data transmission, which can meet the requirements of high-performance computing and data center application scenarios.
Compatibility test: The evaluation board can be used to test 25G SFP28 optical modules of different manufacturers and models to verify their compatibility and performance.
Flexible configuration: The evaluation board provides flexible hardware configuration and software interfaces, facilitating configuration and commissioning based on actual requirements.
| NO. | Index | Maximum value | Minimum value | unit |
| 1 | Data rate | 56 | 1.25 | Gbps |
| 2 | Adjustable output supply voltage | 4 | 2.8 | V |
| 3 | Accuracy of tension voltage regulation | 5 | mV | |
| 4 | Monitoring voltage accuracy | 5 | mV | |
| 5 | Monitoring current | 1000 | 0 | mA |
| 6 | Monitoring current accuracy | 0.1 | mA | |
| 7 | I2C rate | 400 | 100 | KHz |
| 8 | Power supply voltage (external DC power input voltage) | 5.5 | 4 | V |
| 9 | Operating temperature | 85 | -40 | °C |
| 10 | Communication mode | USB HID,No drive. | ||
| 11 | TX,RX Electrical interface type | 40GHz 2.92mm female | ||
| 12 | Input/output level type | CML | ||
