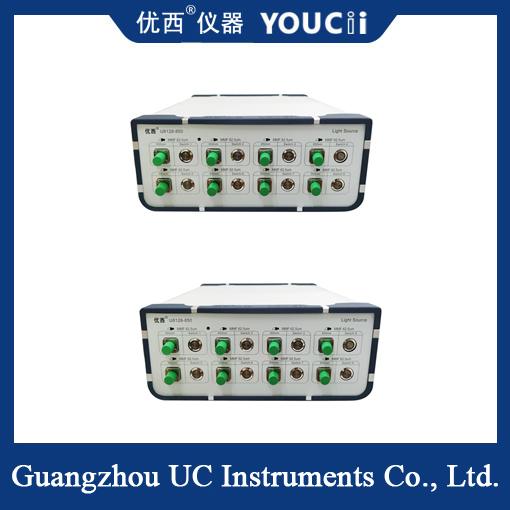

850nm Multi-mode Coaxial Point Light Source With Independent Switch

850nm Multi-mode Coaxial Point Light Source With Independent Switch
850nm Multi-mode Coaxial Point Light Source With Independent Switch

Large Image :  850nm Multi-mode Coaxial Point Light Source With Independent Switch

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8128-850
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 21 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 15pcs+per month
Contact Now

850nm Multi-mode Coaxial Point Light Source With Independent Switch

Description
Operation Temperature: 0～ +40 ℃ Storage Temperature: -30～+80 ℃
Dimensions: 245 Mm W, 105 Mm H, 320 Mm D Weight: 4.0 Kg
Output Power Stability Within 15mins: ≤±0.05 DB Output Power Stability Within 8 Hrs: ≤±0. 1 DB
Connector Type: FC/APC

850nm Multi-mode Coaxial Point Light Source With Independent Switch


Wavelength and Mode
The 850nm wavelength is suitable for short-range multimode optical fiber communication (such as data centers, local area networks) and optical fiber sensing fields. The multi-mode design supports 50/125μm or 62.5/125μm optical fibers, meeting the requirements of high-bandwidth transmission.


Stability and reliability
Power stability: Short-term (15 minutes) fluctuation ≤±0.05dB, long-term (8 hours) fluctuation ≤±0.1dB, suitable for precision testing scenarios.


The circuit ensures stable output in a wide temperature range of -10℃ to 70℃.


Coaxial package: Compact design, space-saving, and compatible with automated test lines.



Model #

U8128-850

Device Package

TO

Optional Wavelength

850 nm

Wavelength Accuracy

± 3 nm

Output Power

≥1.0 mW

Connector Type

FC/APC

Bandwidth@3 dB

＜ 0.1 nm

Bandwidth@20 dB

＜ 0.5 nm

Output Power Stability within 15mins

≤±0.05 dB

Output Power Stability within 8 hrs

≤±0. 1 dB

SMSR

＞ 35 dB

Operation Temperature

0～ +40 ℃

Storage Temperature

-30～+80 ℃

Dimensions

245 mm W, 105 mm H, 320 mm D

Weight

4.0  kg


Application scenarios
Optical fiber communication test.

Optical fiber sensing system.

Scientific research and university experiments.
